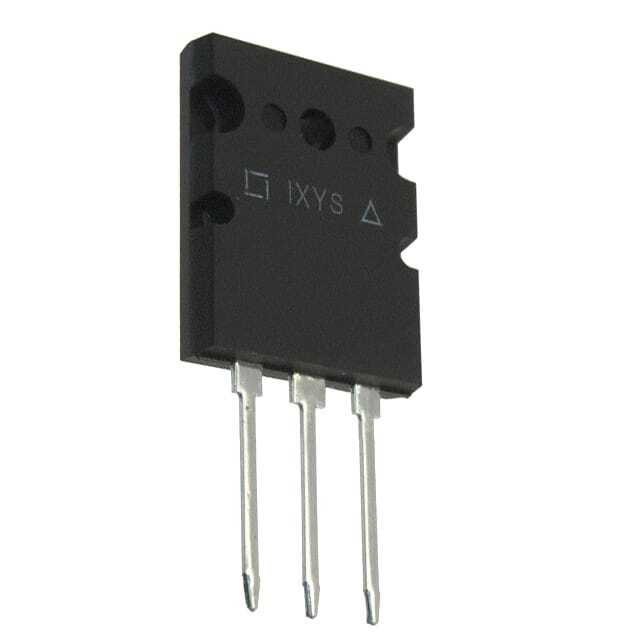

    IXTK20N150

    SKU: 111075
    Manufacturer: IXYS
    Trans MOSFET N-CH 1.5KV 20A 3-Pin(3+Tab) TO-264AA
    1070 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant with Exemption
    ECCN (US) EAR99
    Part Status Active
    Automotive No
    PPAP No
    Product Category Power MOSFET
    Configuration Single
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 1500
    Maximum Gate Source Voltage (V) ±30
    Maximum Gate Threshold Voltage (V) 4.5
    Maximum Continuous Drain Current (A) 20
    Maximum Gate Source Leakage Current (nA) 200
    Maximum IDSS (uA) 50
    Maximum Drain Source Resistance (mOhm) 1000@10V
    Typical Gate Charge @ Vgs (nC) 215@10V
    Typical Gate Charge @ 10V (nC) 215
    Typical Input Capacitance @ Vds (pF) 7800@25V
    Maximum Power Dissipation (mW) 1250000
    Typical Fall Time (ns) 33
    Typical Rise Time (ns) 30
    Typical Turn-Off Delay Time (ns) 80
    Typical Turn-On Delay Time (ns) 35
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Original Package TO-264AA
    Pin Count 3
    Terminal Form Through Hole
    Package Height 26.16(Max)
    Package Length 19.96(Max)
    Package Width 5.13(Max)
    PCB changed 3
