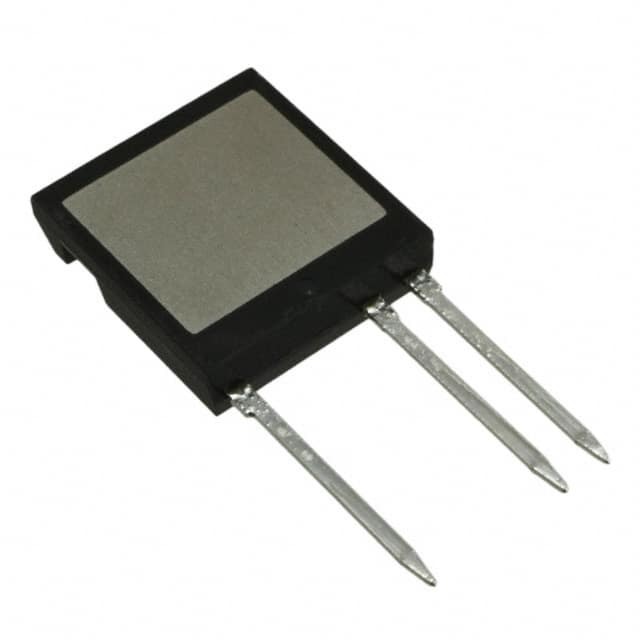

IXTF1N450

SKU: 47549

Manufacturer: IXYS

Trans MOSFET N-CH Si 4.5KV 0.9A 3-Pin(3+Tab) ISOPLUS I4-PAK

2570 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Active
Automotive	No
PPAP	No
Product Category	Power MOSFET
Body Material	Si
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	4500
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	6
Maximum Continuous Drain Current (A)	0.9
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	50
Maximum Drain Source Resistance (mOhm)	80000@10V
Typical Gate Charge @ Vgs (nC)	40@10V
Typical Gate Charge @ 10V (nC)	40
Typical Input Capacitance @ Vds (pF)	1730@25V
Maximum Power Dissipation (mW)	160000
Typical Fall Time (ns)	127
Typical Rise Time (ns)	60
Typical Turn-Off Delay Time (ns)	58
Typical Turn-On Delay Time (ns)	34
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	ISOPLUS I4-PAK
Pin Count	3
Terminal Form	Through Hole
Package Height	21.34(Max)
Package Length	20.29(Max)
Package Width	5.21(Max)
PCB changed	3
