IXTA300N04T2

SKU: 79873

Manufacturer: IXYS

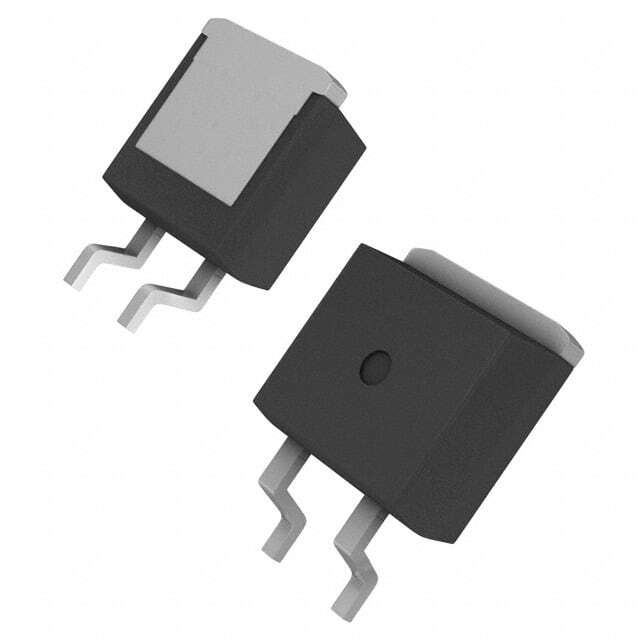

Trans MOSFET N-CH 40V 300A Automotive 3-Pin(2+Tab) TO-263AA

3620 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Active
Automotive	Unknown
PPAP	Unknown
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	40
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	300
Maximum Drain Source Resistance (mOhm)	2.5@10V
Typical Gate Charge @ Vgs (nC)	145@10V
Typical Gate Charge @ 10V (nC)	145
Typical Input Capacitance @ Vds (pF)	10700@25V
Maximum Power Dissipation (mW)	480000
Typical Fall Time (ns)	13
Typical Rise Time (ns)	17
Typical Turn-Off Delay Time (ns)	32
Typical Turn-On Delay Time (ns)	22
Operating Temperature-Min	-55
Operating Temperature-Max	175
Original Package	TO-263AA
Pin Count	3
Terminal Form	Surface Mount
Package Height	4.83(Max)
Package Length	10.29(Max)
Package Width	9.65(Max)
PCB changed	2
