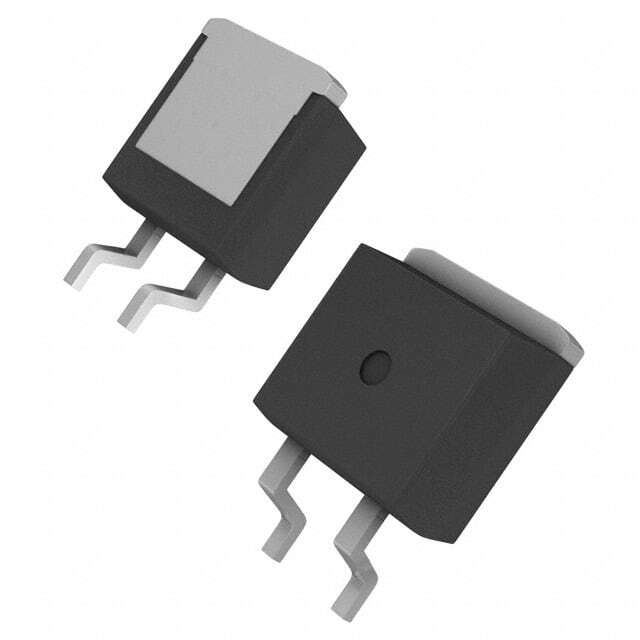

IXTA230N075T2

SKU: 150790

Manufacturer: IXYS

Trans MOSFET N-CH 75V 230A Automotive 3-Pin(2+Tab) D2PAK

1350 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Active
Automotive	Unknown
PPAP	Unknown
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	75
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	230
Maximum Drain Source Resistance (mOhm)	4.2@10V
Typical Gate Charge @ Vgs (nC)	178@10V
Typical Gate Charge @ 10V (nC)	178
Typical Input Capacitance @ Vds (pF)	10500@25V
Maximum Power Dissipation (mW)	480000
Typical Fall Time (ns)	15
Typical Rise Time (ns)	18
Typical Turn-Off Delay Time (ns)	33
Typical Turn-On Delay Time (ns)	23
Operating Temperature-Min	-55
Operating Temperature-Max	175
Original Package	D2PAK
Pin Count	3
Standard Package Method	TO-263
Terminal Form	Surface Mount
Package Height	4.83(Max)
Package Length	10.41(Max)
Package Width	9.4(Max)
PCB changed	2
Tab	Tab
