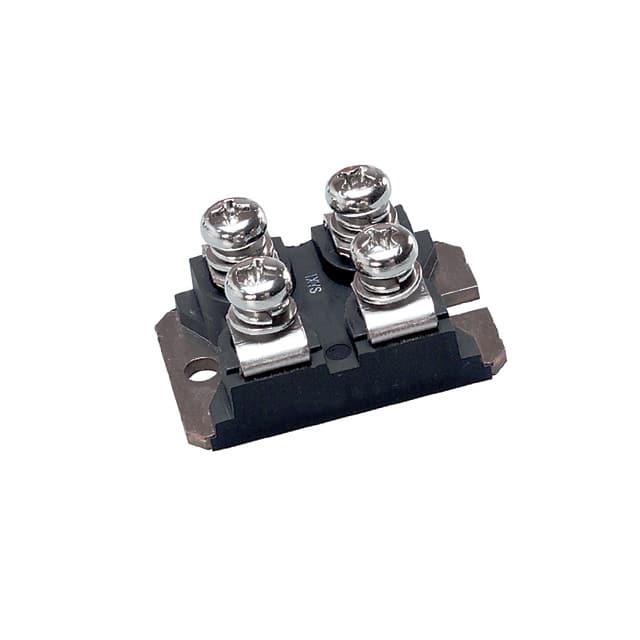

IXKN75N60C

SKU: 33270

Manufacturer: IXYS

Trans MOSFET N-CH 600V 75A 4-Pin SOT-227B

1460 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Process Technology	CoolMOS
Configuration	Single Dual Source
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	600
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	75
Maximum Drain Source Resistance (mOhm)	36@10V
Typical Gate Charge @ Vgs (nC)	500@10V
Typical Gate Charge @ 10V (nC)	500
Typical Fall Time (ns)	10
Typical Rise Time (ns)	30
Typical Turn-Off Delay Time (ns)	110
Typical Turn-On Delay Time (ns)	20
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	SOT-227B
Pin Count	4
Terminal Form	Screw
Package Length	38.23(Max)
Package Width	25.42(Max)
