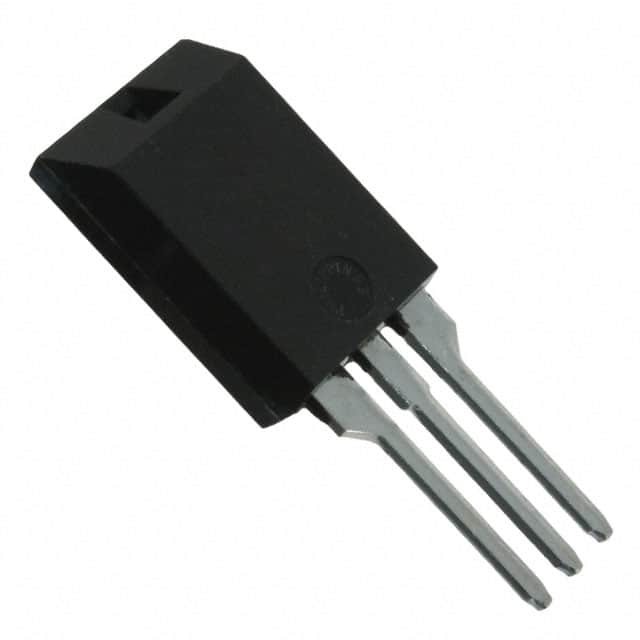

IXKC25N80C

SKU: 51845

Manufacturer: IXYS

Trans MOSFET N-CH Si 800V 25A 3-Pin(3+Tab) ISOPLUS 220

1820 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
Part Status	Obsolete
Automotive	No
PPAP	No
Product Category	Power MOSFET
Body Material	Si
Process Technology	CoolMOS
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	800
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	25
Maximum Drain Source Resistance (mOhm)	150@10V
Typical Gate Charge @ Vgs (nC)	180@10V
Typical Gate Charge @ 10V (nC)	180
Typical Input Capacitance @ Vds (pF)	4600@25V
Typical Fall Time (ns)	10
Typical Rise Time (ns)	25
Typical Turn-Off Delay Time (ns)	75
Typical Turn-On Delay Time (ns)	25
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	ISOPLUS 220
Pin Count	3
Terminal Form	Through Hole
Package Height	16(Max)
Package Length	11(Max)
Package Width	5(Max)
PCB changed	3
