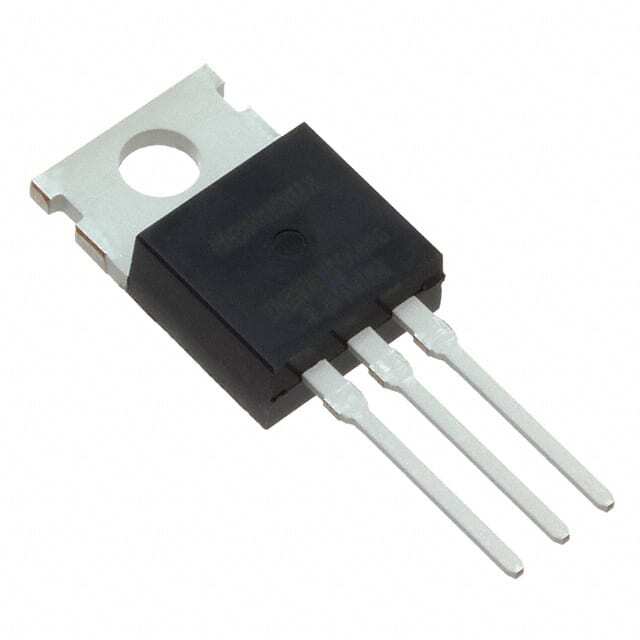

IXFP14N85X

SKU: 26160

Manufacturer: IXYS

Trans MOSFET N-CH 850V 14A 3-Pin(3+Tab) TO-220AB

2820 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	850
Maximum Gate Source Voltage (V)	±30
Maximum Continuous Drain Current (A)	14
Maximum Drain Source Resistance (mOhm)	550@10V
Typical Gate Charge @ Vgs (nC)	30@10V
Typical Gate Charge @ 10V (nC)	30
Typical Input Capacitance @ Vds (pF)	1043@25V
Maximum Power Dissipation (mW)	460000
Typical Fall Time (ns)	13
Typical Rise Time (ns)	30
Typical Turn-Off Delay Time (ns)	36
Typical Turn-On Delay Time (ns)	16
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	TO-220AB
Pin Count	3
Terminal Form	Through Hole
Package Height	9.15(Max)
Package Length	10.66(Max)
Package Width	4.83(Max)
PCB changed	3
