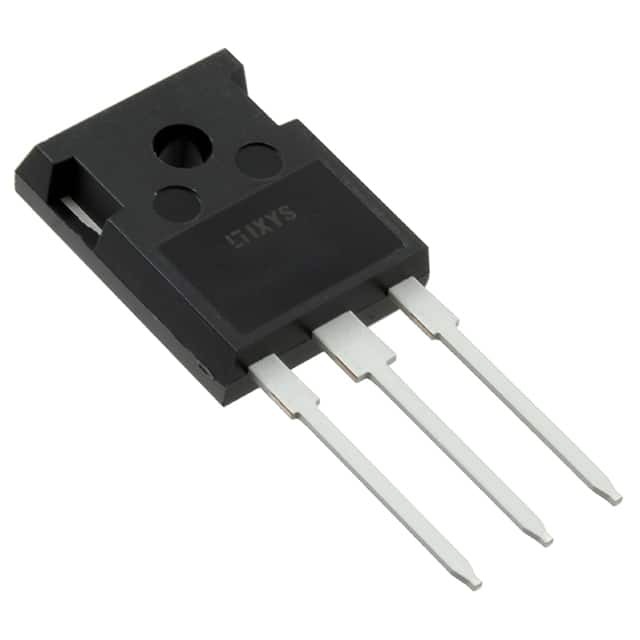

    IXFH12N90P

    SKU: 75683
    Manufacturer: IXYS
    Trans MOSFET N-CH 900V 12A 3-Pin(3+Tab) TO-247AD
    3280 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant with Exemption
    ECCN (US) EAR99
    Part Status Active
    SVHC Yes
    SVHC Exceeds Threshold Yes
    Automotive No
    PPAP No
    Product Category Power MOSFET
    Configuration Single
    Process Technology Polar HiperFET
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 900
    Maximum Gate Source Voltage (V) ±30
    Operating Junction Temperature (°C) 150
    Maximum Continuous Drain Current (A) 12
    Maximum Drain Source Resistance (mOhm) 1000@10V
    Typical Gate Charge @ Vgs (nC) 56@10V
    Typical Gate Charge @ 10V (nC) 56
    Typical Input Capacitance @ Vds (pF) 3080@25V
    Maximum Power Dissipation (mW) 380000
    Typical Fall Time (ns) 68
    Typical Rise Time (ns) 34
    Typical Turn-Off Delay Time (ns) 50
    Typical Turn-On Delay Time (ns) 32
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Original Package TO-247AD
    Pin Count 3
    Standard Package Method TO-247
    Terminal Form Through Hole
    Package Height 21.45(Max)
    Package Length 16.24(Max)
    Package Width 5.3(Max)
    PCB changed 3
    Tab Tab
