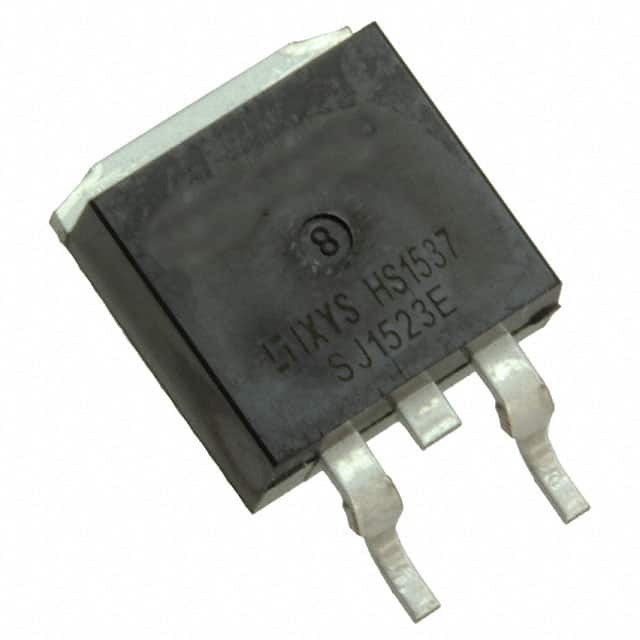

IXFA34N65X2

SKU: 68717

Manufacturer: IXYS

Trans MOSFET N-CH 650V 34A 3-Pin(2+Tab) D2PAK

1640 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	650
Maximum Gate Source Voltage (V)	±30
Maximum Continuous Drain Current (A)	34
Maximum Drain Source Resistance (mOhm)	100@10V
Typical Gate Charge @ Vgs (nC)	56@10V
Typical Gate Charge @ 10V (nC)	56
Typical Input Capacitance @ Vds (pF)	3230@25V
Maximum Power Dissipation (mW)	540000
Typical Fall Time (ns)	30
Typical Rise Time (ns)	60
Typical Turn-Off Delay Time (ns)	64
Typical Turn-On Delay Time (ns)	37
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	D2PAK
Pin Count	3
Standard Package Method	TO-263
Terminal Form	Surface Mount
Package Height	4.83(Max)
Package Length	10.41(Max)
Package Width	9.4(Max)
PCB changed	2
Tab	Tab
