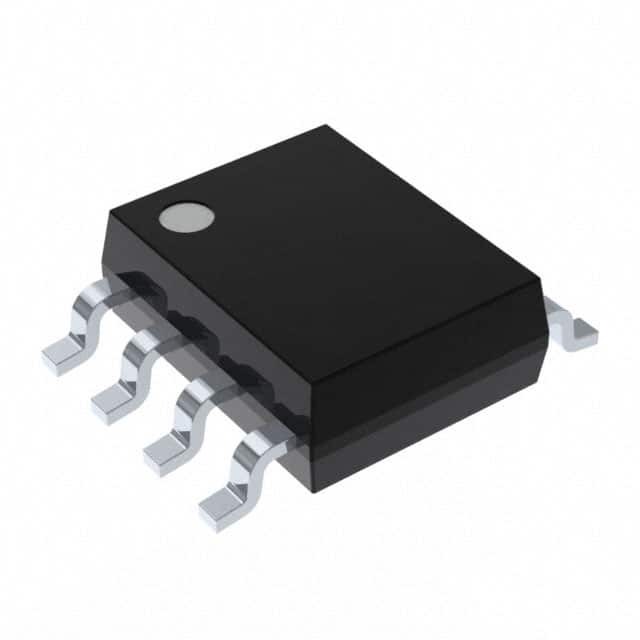

IXDI609SITR

SKU: 37570

Manufacturer: IXYS

Driver 9A 1-OUT Low Side Inv Automotive 8-Pin SOIC EP T/R

3360 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Yes
PPAP	Unknown
Driver Type	Low Side
Driver Configuration	Inverting
Number of Drivers	1
Type	IGBT
Number of Outputs	1
Maximum Rise Time (ns)	35
Maximum Fall Time (ns)	25
Maximum Propagation Delay Time (ns)	60
Input Logic Compatibility	CMOS
Operating Supply Voltage-Min (V)	4.5
Operating Supply Voltage-Max (V)	35
Maximum Supply Current (mA)	2
Typical Input Low Threshold Voltage (V)	0.8(Max)
Typical Input High Threshold Voltage (V)	3(Min)
Peak Output Current (A)	9
Output Resistance (Ohm)	0.6
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Latch-Up Proof	Yes
Packing Method	Tape and Reel
Original Package	SOIC EP
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.25(Min)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
