GUO40-16NO1

SKU: 54487

Manufacturer: IXYS

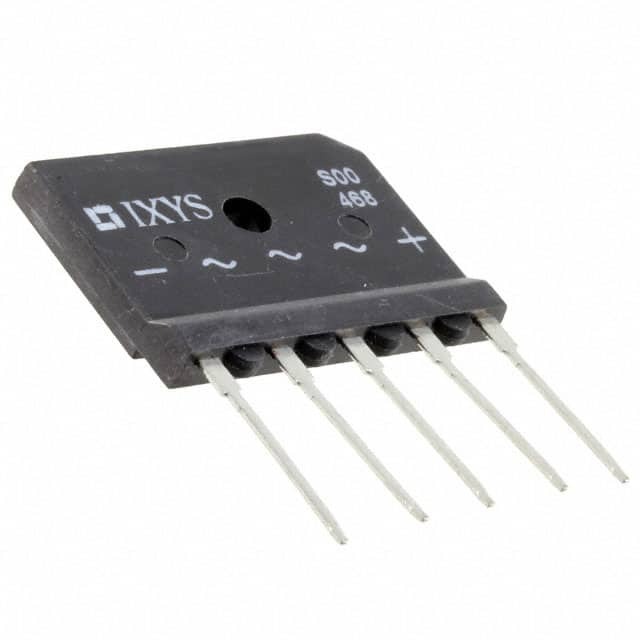

Rectifier Bridge Diode Single 1.6KV 40A 5-Pin(5+Tab) GUFP

3450 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Bridge Type	Three Phase
Configuration	Single
Peak Reverse Repetitive Voltage (V)	1600
Peak Average Forward Current (A)	40
Peak Non-Repetitive Forward Surge Current (A)	400
Peak Forward Voltage (V)	1.3@25A
Peak Reverse Current (uA)	40
Maximum Power Dissipation (mW)	35000
Operating Temperature-Min	-40
Operating Temperature-Max	150
Original Package	GUFP
Pin Count	5
Terminal Form	Through Hole
Package Height	26.5
Package Length	35
Package Width	5.5
PCB changed	5
