DSSK30-018A

SKU: 131926

Manufacturer: IXYS

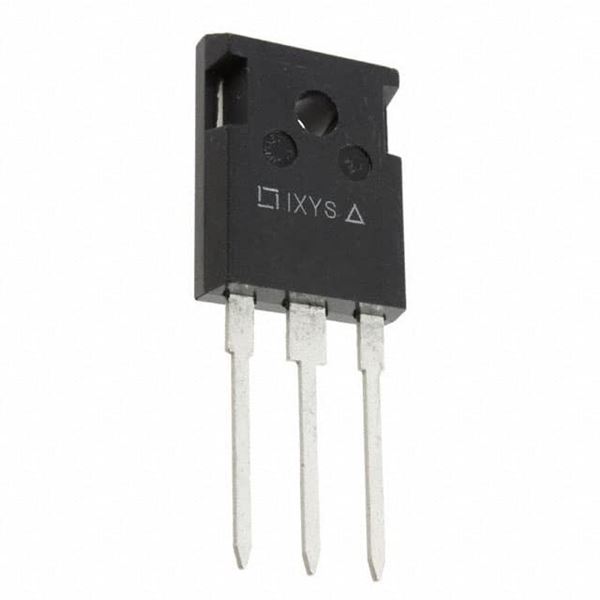

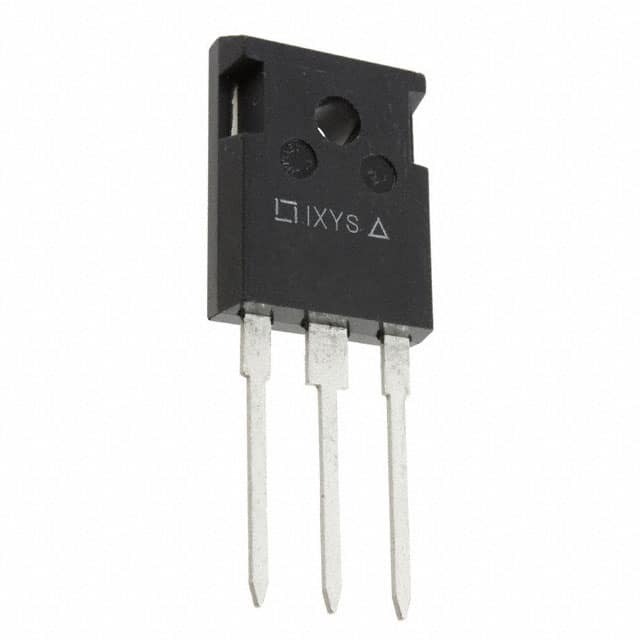

Rectifier Diode Schottky 180V 30A 3-Pin(3+Tab) TO-247AD

310 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	Schottky Diode
Configuration	Dual Common Cathode
Peak Reverse Repetitive Voltage (V)	180
Maximum Continuous Forward Current (A)	30
Peak Non-Repetitive Surge Current (A)	120
Peak Forward Voltage (V)	0.86@15A
Peak Reverse Current (uA)	300
Maximum Power Dissipation (mW)	90000
Operating Temperature-Min	-55
Operating Temperature-Max	175
Original Package	TO-247AD
Pin Count	3
Standard Package Method	TO-247
Terminal Form	Through Hole
Package Height	21.46(Max)
Package Length	16.26(Max)
Package Width	5.3(Max)
PCB changed	3
Tab	Tab
