DSEP29-06AS-TUB

SKU: 129352

Manufacturer: IXYS

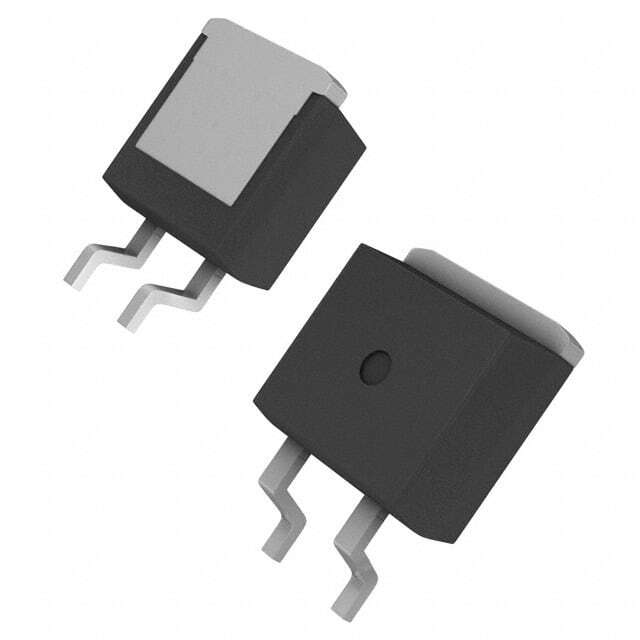

Rectifier Diode Switching 600V 30A 35ns 3-Pin(2+Tab) D2PAK Tube

2310 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

ECCN (US)	EAR99
Automotive	No
PPAP	No
Type	Switching Diode
Configuration	Single Dual Anode
Peak Reverse Repetitive Voltage (V)	600
Maximum Continuous Forward Current (A)	30
Peak Non-Repetitive Surge Current (A)	250
Peak Forward Voltage (V)	1.94@60A
Peak Reverse Current (uA)	250
Maximum Power Dissipation (mW)	165000
Peak Reverse Recovery Time (ns)	35(Typ)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	D2PAK
Pin Count	3
Terminal Form	Surface Mount
Package Height	4.83(Max)
Package Length	10.41(Max)
Package Width	9.4(Max)
PCB changed	2
