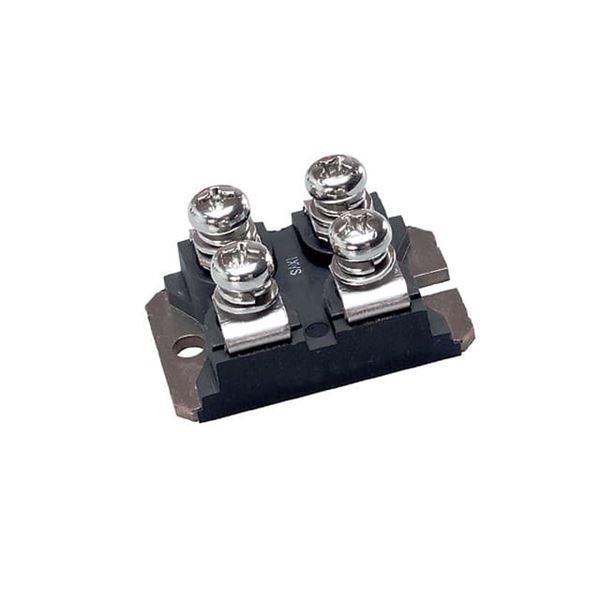

DSEI2X61-04C

SKU: 150646

Manufacturer: IXYS

Rectifier Diode Switching 400V 60A 50ns 4-Pin SOT-227B

2100 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	Switching Diode
Configuration	Dual Parallel
Peak Reverse Repetitive Voltage (V)	400
Maximum Continuous Forward Current (A)	60
Peak Non-Repetitive Surge Current (A)	600
Peak Forward Voltage (V)	1.8
Peak Reverse Current (uA)	200
Maximum Power Dissipation (mW)	180000
Peak Reverse Recovery Time (ns)	50
Operating Temperature-Min	-40
Operating Temperature-Max	150
Original Package	SOT-227B
Pin Count	4
Standard Package Method	SOT
Terminal Form	Screw
Package Length	38.23(Max)
Package Width	25.42(Max)
PCB changed	4
