DSA30C200PB

SKU: 129349

Manufacturer: IXYS

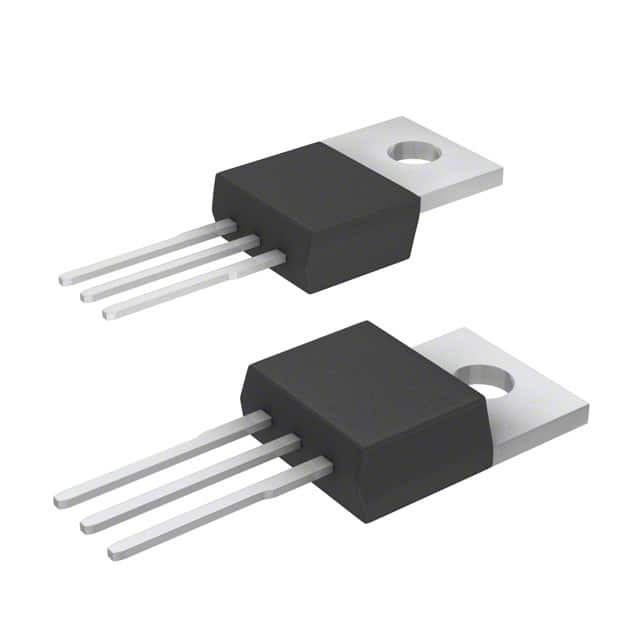

Rectifier Diode Schottky 200V 15A 3-Pin(3+Tab) TO-220 Tube

3460 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Schottky Diode
Configuration	Dual Common Cathode
Peak Reverse Repetitive Voltage (V)	200
Maximum Continuous Forward Current (A)	15
Peak Non-Repetitive Surge Current (A)	120
Peak Forward Voltage (V)	1.1@30A
Peak Reverse Current (uA)	250
Maximum Power Dissipation (mW)	85000
Operating Temperature-Min	-55
Operating Temperature-Max	175
Packing Method	Tube
Original Package	TO-220
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	9.66(Max)
Package Length	10.66(Max)
Package Width	4.82(Max)
PCB changed	3
Tab	Tab
