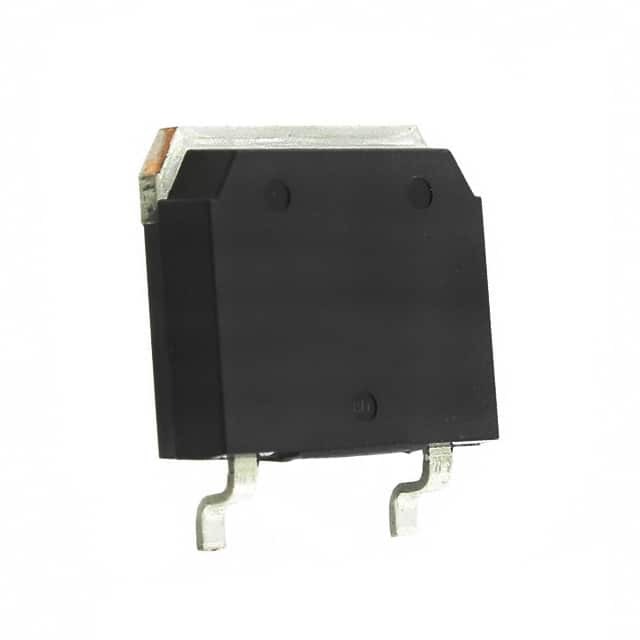

CLA60MT1200NTZ

SKU: 46729

Manufacturer: IXYS

TRIAC Diode 1200V 66A(RMS) 410A 3-Pin(2+Tab) D3PAK-HV Tube

1560 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.30.00.80
Automotive	No
PPAP	No
Maximum Rate of Rise of Off-State Voltage (V/us)	500
Maximum Rate of Rise of On-State Current (A/us)	500
Maximum Gate Trigger Voltage (V)	1.7
Maximum Gate Trigger Current (mA)	60
Surge Current Rating (A)	410
Maximum Holding Current (mA)	60
Repetitive Peak Reverse Voltage (V)	1200
Peak On-State Voltage (V)	1.56@60A
Repetitive Peak Forward Blocking Voltage (V)	1200
Rated Average On-State Current (A)	30
RMS On-State Current (A)	66
Maximum Latching Current (mA)	90
Peak Gate Power Dissipation (W)	10
Average Gate Power Dissipation (W)	0.5
Circuit Fusing Consideration (A²S)	720
AC Switch	No
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tube
Original Package	D3PAK-HV
Pin Count	3
Terminal Form	Surface Mount
Package Height	5.1(Max)
Package Length	16.05(Max)
Package Width	14(Max)
PCB changed	2
Tab	Tab
