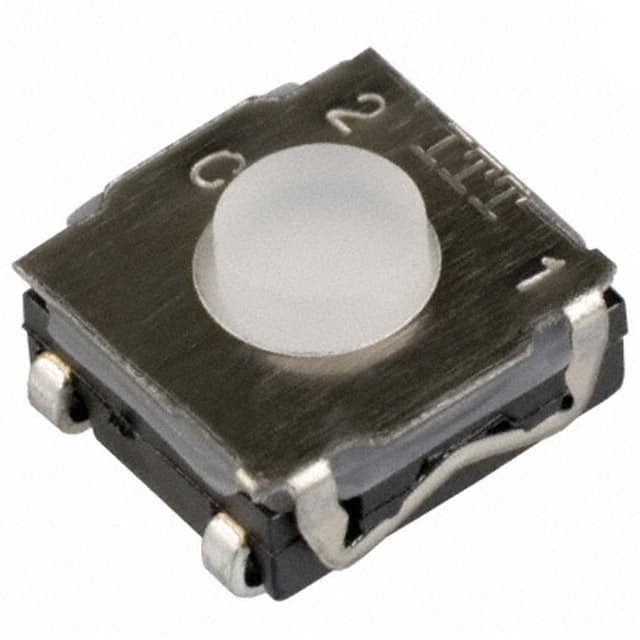

KSC221JLFS

SKU: 108171

Manufacturer: ITT Inc

Switch Tactile N.O. SPST Round Button J-Bend 0.05A 32VDC 1VA 500000Cycles 2N SMD Automotive T/R

2150 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Pole Throw Configuration	SPST
Actuator Style	Round Button
Switching Function	Momentary
Switch Configuration	N.O.
Current Rating-Max(A)	0.05@32VDC
Maximum Power Rating (VA)	1@32VDC
Dielectric Strength	250VAC
Minimum Insulation Resistance (MOhm)	>10
Maximum Contact Resistance (mOhm)	<100
Electrical Life (Cycles)	500000
Mechanical Life (Cycles)	500000
Operating Force (N)	2
Actuator Length (mm)	0.9
Number of Rows	2
Row Spacing (mm)	5.8
Terminal Form	Surface Mount
Terminal Form	J-Bend
Number of Terminals	4
Terminal Length (mm)	0.3
Terminal Pitch (mm)	4
IP Rating	IP67
Body Orientation	Straight
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Body Length (mm)	6.2
Body Depth (mm)	6.2
Body Height (mm)	2.7
Length (mm)	6.2
Depth (mm)	6.8
Height (mm)	3.5
