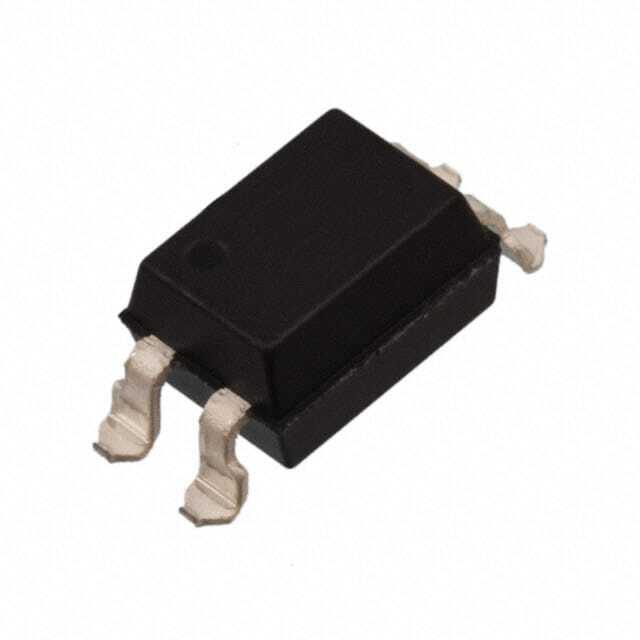

IS2701-1C

SKU: 68683

Manufacturer: Isocom Components

DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP SMD

860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	No
PPAP	No
Output Type	DC
Input Type	DC
Output Device	Transistor
Number of Channels per Chip	1
Minimum Isolation Voltage (Vrms)	3750
Operating Temperature-Min	-55
Operating Temperature-Max	100
Maximum Forward Voltage (V)	1.4
Collector-Emitter Voltage-Max (V)	80
Maximum Current Transfer Ratio (%)	400
Maximum Collector Current (mA)	50
Maximum Collector-Emitter Saturation Voltage (mV)	200
Maximum Power Dissipation (mW)	170
Typical Forward Voltage (V)	1.2
Maximum Reverse Voltage (V)	6
Maximum Rise Time (us)	18
Maximum Fall Time (us)	18
Maximum Forward Current (mA)	50
Minimum Current Transfer Ratio (%)	200
Current Transfer Ratio Test Current (mA)	5
Typical Rise Time (us)	4
Typical Fall Time (us)	3
Standard Package Method	DIP
Pin Count	4
Original Package	PDIP SMD
Terminal Form	Surface Mount
Package Height	2
Package Length	3.85
Package Width	4.4
