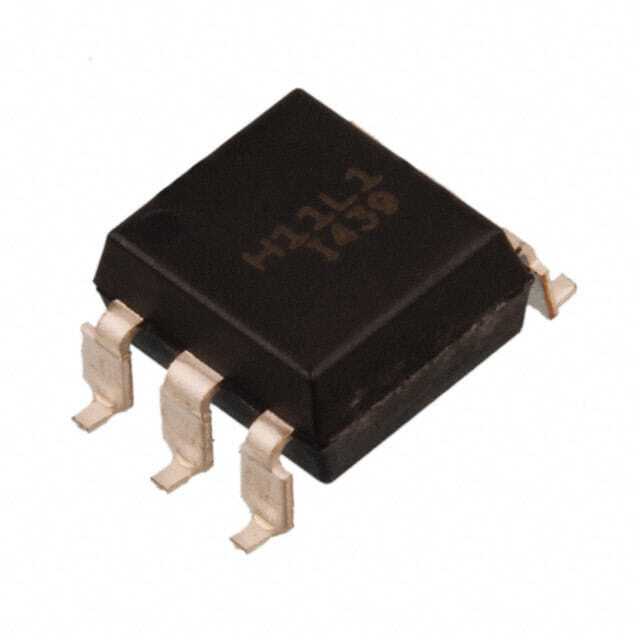

H11L1SMT/R

SKU: 117973

Manufacturer: Isocom Components

MICROPROCESSOR COMPATIBLE SCHMITT TRIGGER OPTICALLY COUPLED ISOLATOR

2400 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	No
PPAP	No
Logic Gate Type	AND Schmitt
Number of Channels per Chip	1
Polarity	Inverting
Direction Type	Uni-Directional
Minimum Isolation Voltage (Vrms)	5300
Typical Rise Time (us)	0.1
Typical Fall Time (us)	0.05
Maximum Propagation Delay Time (ns)	6000
Standard	UL
Maximum Forward Current (mA)	50
Maximum Continuous Output Current (mA)	50
Maximum Forward Voltage (V)	1.5
Maximum Reverse Voltage (V)	6
Maximum Power Dissipation (mW)	170
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Standard Package Method	DIP
Original Package	PDIP SMD
Pin Count	6
Terminal Form	Surface Mount
Package Height	3.5
Package Length	7.12
Package Width	6.5
