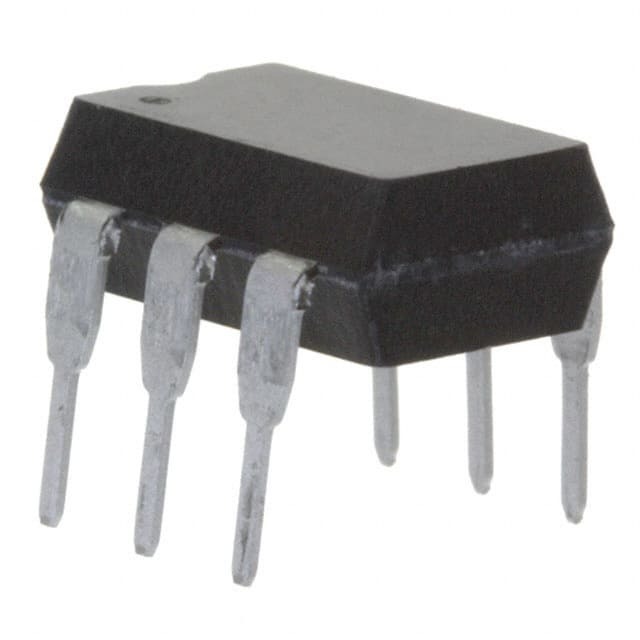

H11B3

SKU: 153464

Manufacturer: Isocom Components

DC-IN 1-CH Darlington With Base DC-OUT 6-Pin PDIP

1920 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	No
PPAP	No
Output Type	DC
Input Type	DC
Output Device	Darlington With Base
Number of Channels per Chip	1
Minimum Isolation Voltage (Vrms)	5300
Operating Temperature-Min	-55
Operating Temperature-Max	100
Maximum Forward Voltage (V)	1.5
Collector-Emitter Voltage-Max (V)	30
Standard	UL
Maximum Collector-Emitter Saturation Voltage (mV)	1000
Maximum Power Dissipation (mW)	250
Typical Forward Voltage (V)	1.2
Maximum Reverse Voltage (V)	3(Min)
Maximum Forward Current (mA)	80
Minimum Current Transfer Ratio (%)	100
Current Transfer Ratio Test Current (mA)	1
Standard Package Method	DIP
Pin Count	6
Original Package	PDIP
Terminal Form	Through Hole
Package Height	4.3(Max)
Package Length	8.8(Max)
Package Width	6.4(Max)
PCB changed	6
