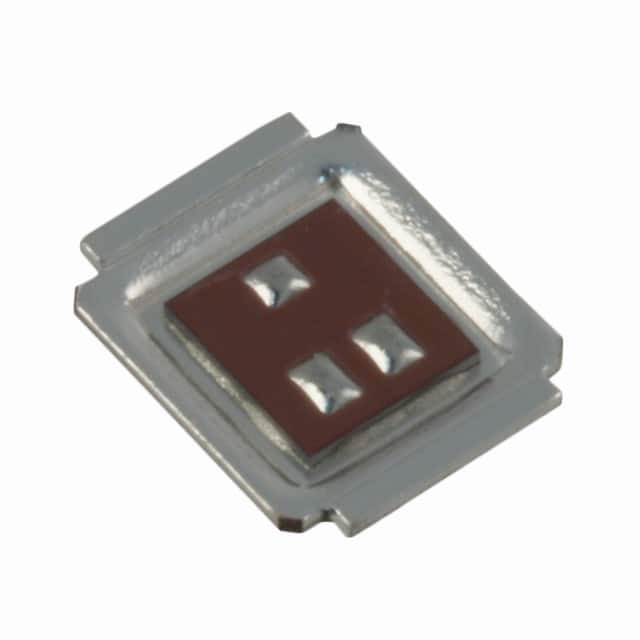

IRF6608TR1

SKU: 139423

Manufacturer: International Rectifier

Trans MOSFET N-CH Si 30V 13A 7-Pin Direct-FET ST T/R

4710 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Body Material	Si
Process Technology	HEXFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±12
Maximum Continuous Drain Current (A)	13
Maximum Drain Source Resistance (mOhm)	9@10V
Typical Gate Charge @ Vgs (nC)	16@4.5V
Typical Input Capacitance @ Vds (pF)	2120@15V
Maximum Power Dissipation (mW)	2100
Typical Fall Time (ns)	3.4
Typical Rise Time (ns)	12
Typical Turn-Off Delay Time (ns)	16
Typical Turn-On Delay Time (ns)	13
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	Direct-FET ST
Pin Count	7
Terminal Form	Surface Mount
Package Height	0.53(Max)
Package Length	3.95(Max)
Package Width	3.95(Max)
PCB changed	7
