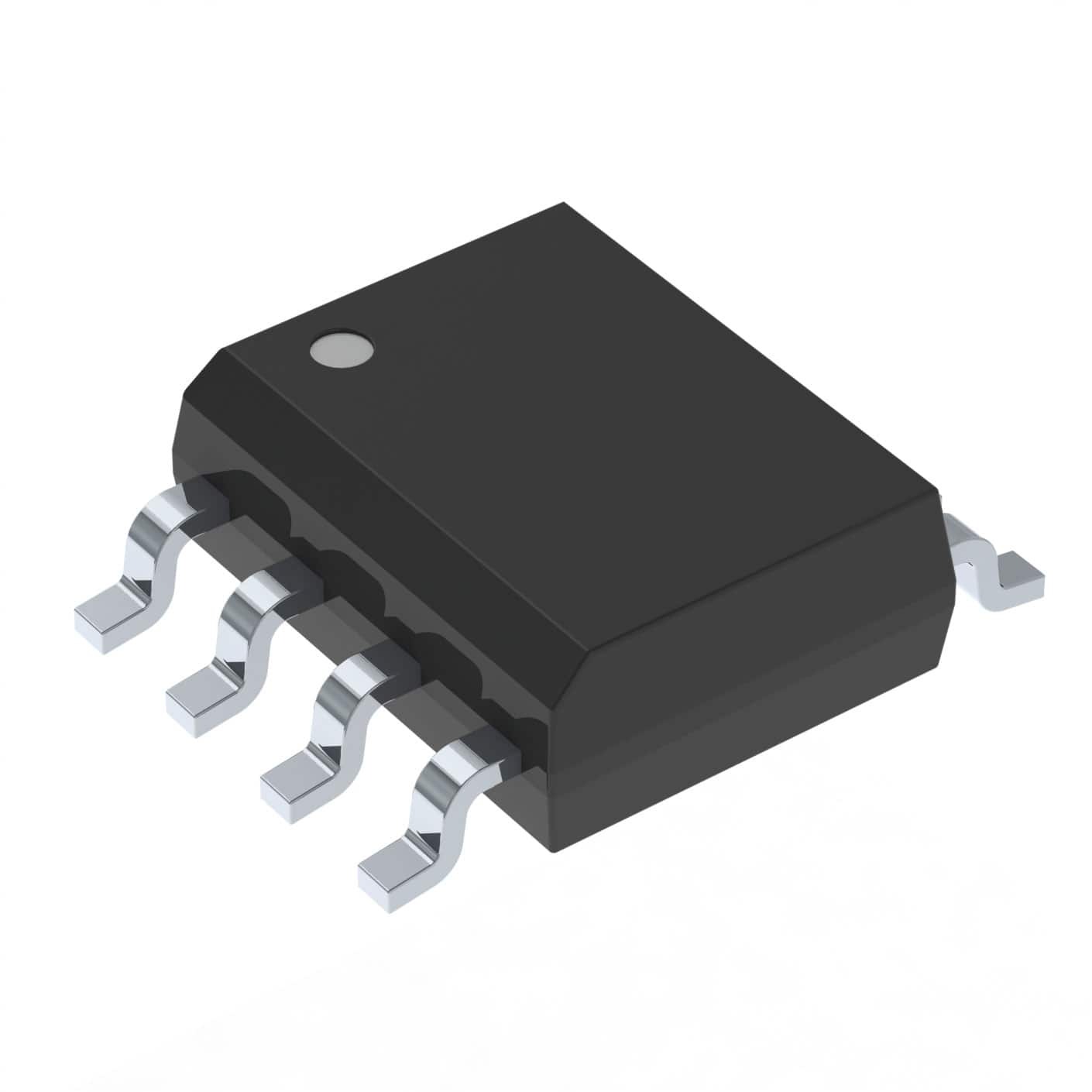

    IRF6216TRPBF

    SKU: 82651
    Manufacturer: International Rectifier
    Trans MOSFET P-CH 150V 2.2A 8-Pin SOIC T/R
    29610 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Obsolete
    HTS 8541.21.00.75
    Automotive No
    PPAP No
    Product Category Power MOSFET
    Configuration Single Quad Drain Triple Source
    Process Technology HEXFET
    Channel Mode Enhancement
    Channel Type P
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 150
    Maximum Gate Source Voltage (V) ±20
    Maximum Continuous Drain Current (A) 2.2
    Maximum Drain Source Resistance (mOhm) 240@10V
    Typical Gate Charge @ Vgs (nC) 33@10V
    Typical Gate Charge @ 10V (nC) 33
    Typical Input Capacitance @ Vds (pF) 1280@25V
    Maximum Power Dissipation (mW) 2500
    Typical Fall Time (ns) 26
    Typical Rise Time (ns) 15
    Typical Turn-Off Delay Time (ns) 33
    Typical Turn-On Delay Time (ns) 18
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Packing Method Tape and Reel
    Pin Count 8
    Standard Package Method SOP
    Original Package SOIC
    Terminal Form Surface Mount
    Package Height 1.5(Max)
    Package Length 5(Max)
    Package Width 4(Max)
    PCB changed 8
