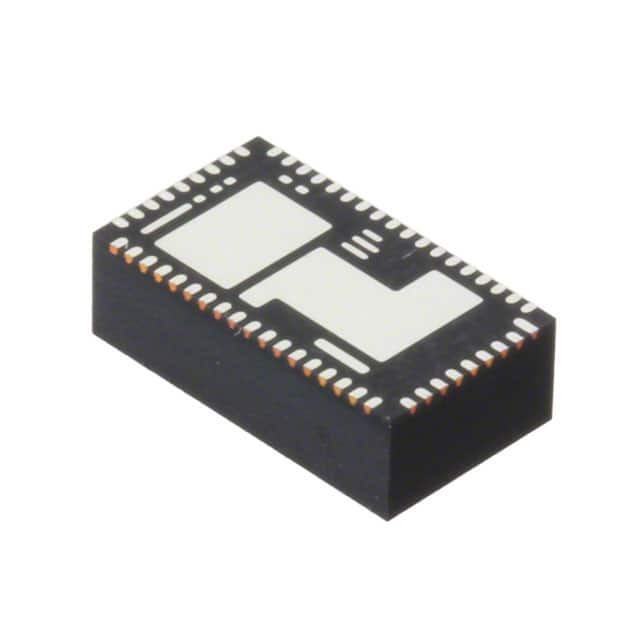

EV1340QI

SKU: 89444

Manufacturer: Intel

Conv DC-DC 2.9V to 3.7V Single-Out 5A 54-Pin QFN EP T/R

130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	LTB
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Isolation	Non-Isolated
Switching Frequency (kHz)	1500(Typ)
Switching Regulator	Yes
Number of Outputs	1
Maximum Output Current (A)	5
Minimum Input Voltage (V)	2.9
Typical Input Voltage (V)	3.3
Maximum Input Voltage (V)	3.7
Operating Supply Voltage (V)	3.3
Efficiency (%)	91
Maximum ESD Protection Voltage (kV)	0.5@CDM/2@HBM
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	QFN EP
Pin Count	54
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	3
Package Length	10
Package Width	5.5
PCB changed	54
