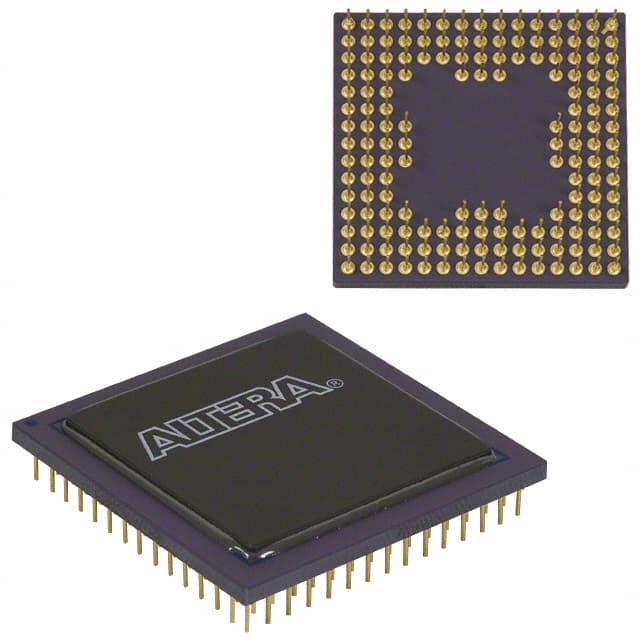

EPM7192EGC160-20

SKU: 124856

Manufacturer: Intel

CPLD MAX® 7000 Family 3.75K Gates 192 Macro Cells 62.5MHz 5V 160-Pin CPGA Tray

20 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Family Name	MAX® 7000
Program Memory Type	EEPROM
Number of Logic Blocks/Elements	12
Number of Global Clocks	2
Number of Macro Cells	192
Product Terms	32
Device System Gates	3750
Data Gate	No
Maximum Number of User I/Os	124
In-System Programmability	Yes
Programmability	Yes
Reprogrammability Support	Yes
Maximum Internal Frequency (MHz)	83.33
Maximum Clock to Output Delay (ns)	12
Maximum Propagation Delay Time (ns)	20
Speed Grade	20
Individual Output Enable Control	Yes
Operating Supply Voltage-Min (V)	4.75
Operating Supply Voltage-Max (V)	5.25
Typical Operating Supply Voltage (V)	5
I/O Voltage (V)	3.3
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tray
Tradename	MAX
Original Package	CPGA
Pin Count	160
Standard Package Method	PGA
Terminal Form	Through Hole
Package Height	3.56
Package Length	39.62
Package Width	39.62
PCB changed	160
