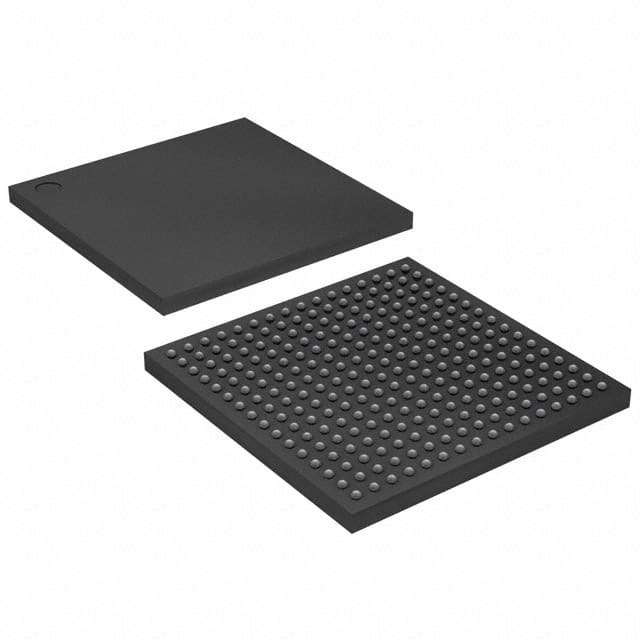

EPM570F256C5N

SKU: 146122

Manufacturer: Intel

CPLD MAX® II Family 440 Macro Cells 201.1MHz 0.18um Technology 3.3V 256-Pin FBGA Tray

9740 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
Automotive	No
PPAP	No
Family Name	MAX® II
Logic Elements	570
Program Memory Type	FLASH
Memory Size (Kbit)	8
Number of Logic Blocks/Elements	57
Number of Global Clocks	4
Number of I/O Banks	2
Number of Macro Cells	440
Process Technology	0.18um
Data Gate	No
Maximum Number of User I/Os	160
In-System Programmability	Yes
Number of Inter Dielectric Layers	6
Programmability	Yes
Reprogrammability Support	No
Programmable Type	In System Programmable
Maximum Internal Frequency (MHz)	1879.7
Maximum Clock to Output Delay (ns)	7.1
Maximum Propagation Delay Time (ns)	8.7
Speed Grade	5
Individual Output Enable Control	Yes
Operating Supply Voltage-Min (V)	2.375
Operating Supply Voltage-Max (V)	3.6
Typical Operating Supply Voltage (V)	3.3
I/O Voltage (V)	3.3
Tolerant Configuration Interface Voltage (V)	1.8
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Packing Method	Tray
Tradename	MAX
Original Package	FBGA
Pin Count	256
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.25
Package Length	17
Package Width	17
PCB changed	256
