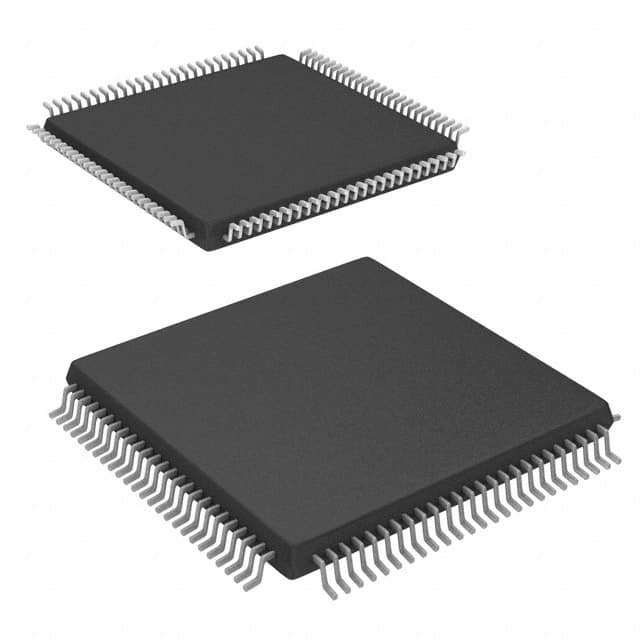

EPM3128ATC100-10

SKU: 117765

Manufacturer: Intel

CPLD MAX® 3000A Family 2.5K Gates 128 Macro Cells 98MHz 3.3V 100-Pin TQFP Tray

690 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Family Name	MAX® 3000A
Program Memory Type	EEPROM
Number of Logic Blocks/Elements	8
Number of Global Clocks	2
Number of Macro Cells	128
Product Terms	32
Device System Gates	2500
Data Gate	No
Maximum Number of User I/Os	80
In-System Programmability	Yes
Programmability	Yes
Reprogrammability Support	Yes
Maximum Internal Frequency (MHz)	125
Maximum Clock to Output Delay (ns)	6.6
Maximum Propagation Delay Time (ns)	10
Speed Grade	10
Individual Output Enable Control	Yes
Operating Supply Voltage-Min (V)	3
Operating Supply Voltage-Max (V)	3.6
Typical Operating Supply Voltage (V)	3.3
I/O Voltage (V)	2.5
Tolerant Configuration Interface Voltage (V)	2.5
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tray
Tradename	MAX
Original Package	TQFP
Pin Count	100
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1
Package Length	14
Package Width	14
PCB changed	100
