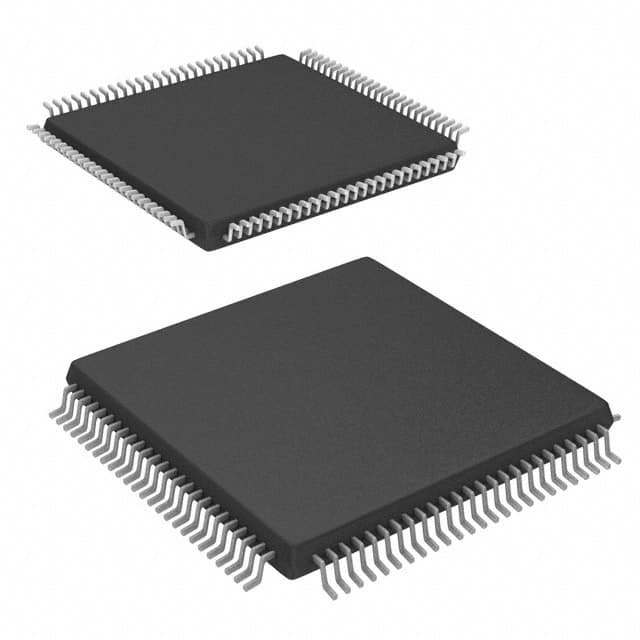

EPM240T100I5N

SKU: 32899

Manufacturer: Intel

CPLD MAX® II Family 192 Macro Cells 201.1MHz 0.18um Technology 2.5V/3.3V Automotive 100-Pin TQFP Tray

5750 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Family Name	MAX® II
Logic Elements	240
Program Memory Type	FLASH
Memory Size (Kbit)	8
Number of Logic Blocks/Elements	24
Number of Global Clocks	4
Number of I/O Banks	2
Number of Macro Cells	192
Process Technology	0.18um
Data Gate	No
Maximum Number of User I/Os	80
In-System Programmability	Yes
Number of Inter Dielectric Layers	6
Programmability	Yes
Reprogrammability Support	No
Maximum Internal Frequency (MHz)	1879.7
Maximum Clock to Output Delay (ns)	6.9
Maximum Propagation Delay Time (ns)	7.5
Speed Grade	5
Individual Output Enable Control	Yes
Operating Supply Voltage-Min (V)	2.375
Operating Supply Voltage-Max (V)	3.6
Typical Operating Supply Voltage (V)	2.5
I/O Voltage (V)	1.5
Tolerant Configuration Interface Voltage (V)	1.8
Operating Temperature-Min	-40
Operating Temperature-Max	100
Supplier Temperature Grade	Industrial
Packing Method	Tray
Tradename	MAX
Pin Count	100
Standard Package Method	QFP
Original Package	TQFP
Terminal Form	Surface Mount
Package Height	1
Package Length	14
Package Width	14
PCB changed	100
