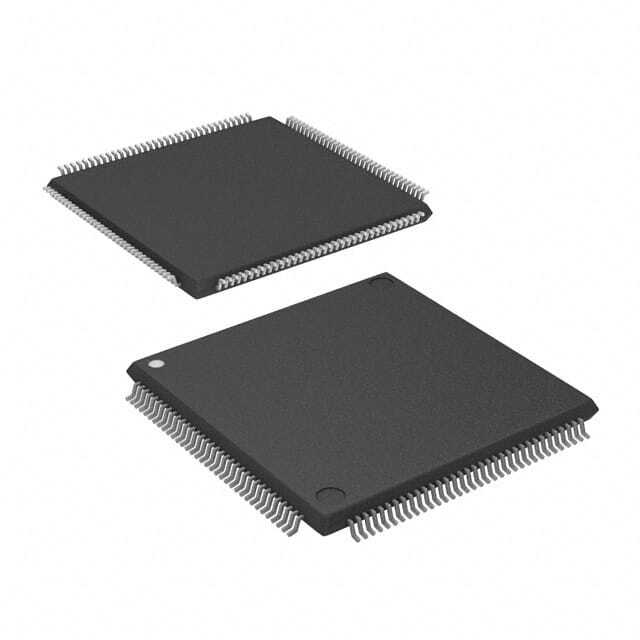

EPM1270T144I5

SKU: 44570

Manufacturer: Intel

CPLD MAX® II Family 980 Macro Cells 201.1MHz 0.18um Technology 2.5V/3.3V 144-Pin TQFP Tray

320 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A991
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Family Name	MAX® II
Logic Elements	1270
Program Memory Type	FLASH
Memory Size (Kbit)	8
Number of Logic Blocks/Elements	127
Number of Global Clocks	4
Number of I/O Banks	4
Number of Macro Cells	980
Process Technology	0.18um
Data Gate	No
Maximum Number of User I/Os	116
In-System Programmability	Yes
Number of Inter Dielectric Layers	6
Programmability	Yes
Reprogrammability Support	No
Maximum Internal Frequency (MHz)	1879.7
Maximum Clock to Output Delay (ns)	7.3
Maximum Propagation Delay Time (ns)	10
Speed Grade	5
Individual Output Enable Control	Yes
Operating Supply Voltage-Min (V)	2.375
Operating Supply Voltage-Max (V)	3.6
Typical Operating Supply Voltage (V)	2.5
I/O Voltage (V)	1.5
Tolerant Configuration Interface Voltage (V)	1.8
Operating Temperature-Min	-40
Operating Temperature-Max	100
Supplier Temperature Grade	Industrial
Packing Method	Tray
Tradename	MAX
Original Package	TQFP
Pin Count	144
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.4
Package Length	20
Package Width	20
PCB changed	144
