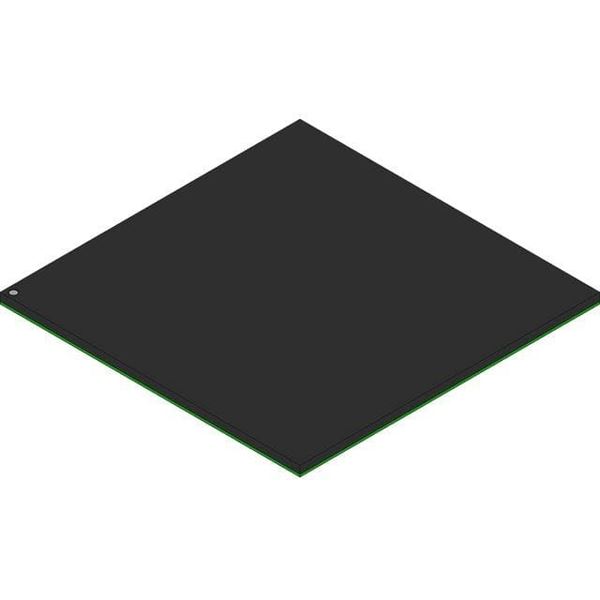

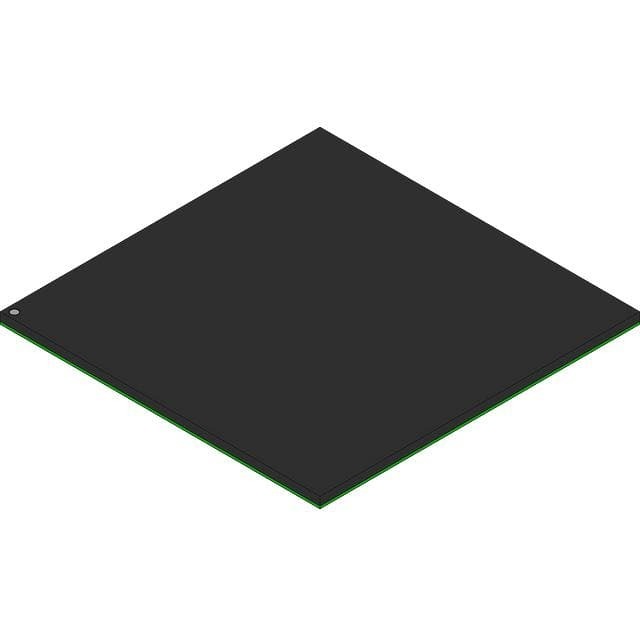

EPF10K200SBC600-1

SKU: 18802

Manufacturer: Intel

FPGA FLEX 10KE Family 200K Gates 9984 Cells 250MHz 0.22um Technology 2.5V 600-Pin BGA

1100 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A991
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Family Name	FLEX 10KE
Process Technology	0.22um
User I/Os	470
Operating Supply Voltage (V)	2.5
Logic Elements	9984
Device System Gates	513000
Program Memory Type	SRAM
Embedded Memory (Kbit)	96
Total Number of Block RAM	24
Device Logic Gates	200000
Device Logic Units	9984
Number of Global Clocks	6
Programmability	No
Reprogrammability Support	Yes
Copy Protection	Yes
Opr. Frequency (MHz)	250
In-System Programmability	No
Speed Grade	1
Single-Ended I/O Standards	LVTTL
Operating Supply Voltage-Min (V)	2.375
Operating Supply Voltage-Max (V)	2.625
I/O Voltage (V)	3.3
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Tradename	FLEX
Original Package	BGA
Pin Count	600
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.1(Max)
Package Length	45
Package Width	45
PCB changed	600
