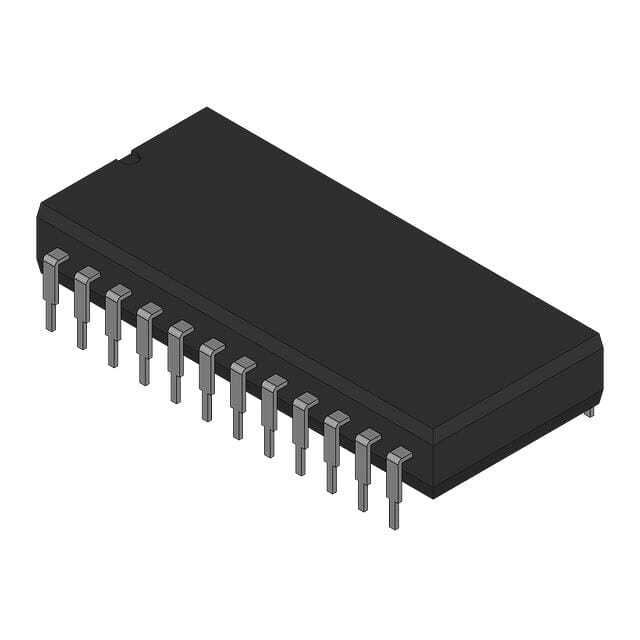

EP610PC-25T

SKU: 86897

Manufacturer: Intel

CPLD Classic Family 300 Gates 16 Macro Cells 40MHz 5V 24-Pin PDIP

1650 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Family Name	Classic
Program Memory Type	EPROM
Number of Global Clocks	2
Number of Macro Cells	16
Product Terms	8
Device System Gates	300
Data Gate	No
Maximum Number of User I/Os	22
In-System Programmability	No
Programmability	Yes
Reprogrammability Support	Yes
Maximum Internal Frequency (MHz)	50
Maximum Clock to Output Delay (ns)	15
Maximum Propagation Delay Time (ns)	25
Speed Grade	25
Individual Output Enable Control	No
Operating Supply Voltage-Min (V)	4.75
Operating Supply Voltage-Max (V)	5.25
Typical Operating Supply Voltage (V)	5
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Tradename	Classic
Original Package	PDIP
Pin Count	24
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	3.3
Package Length	31.75
Package Width	6.86(Max)
PCB changed	24
