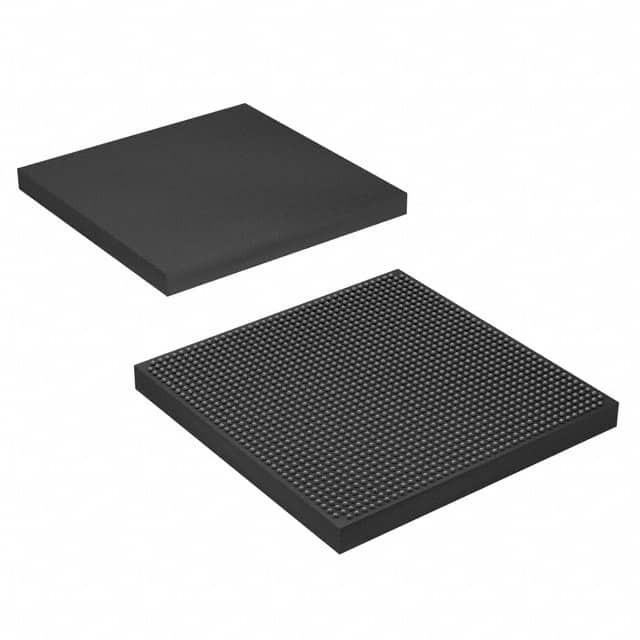

EP4SGX180KF40I3

SKU: 40014

Manufacturer: Intel

FPGA Stratix® IV GX Family 175750 Cells 40nm Technology 0.9V 1517-Pin FC-FBGA

4360 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A001.a.7.a
Part Status	Obsolete
Automotive	No
PPAP	No
Family Name	Stratix® IV GX
Process Technology	40nm
User I/Os	744
Number of I/O Banks	24
Number of Registers	140600
Shift Registers	Utilize Memory
Operating Supply Voltage (V)	0.9
Logic Elements	175750
Number of Multipliers	920 (18x18)
Program Memory Type	SRAM
Embedded Memory (Kbit)	13627
Total Number of Block RAM	20+950
EMACs	1
IP Core	V-by-One HS
Provider Name	Altera/CAST, Inc/Bitec/Eureka Technology Inc/El Camino GmbH
SERDES Channels	88
Device Logic Units	175750
Number of Global Clocks	16
Device Number of DLLs/PLLs	8
Transceiver Channels	24
Transceiver Speed (Gbps)	8.5
Dedicated DSP	115
Programmability	Yes
Reprogrammability Support	No
Copy Protection	Yes
In-System Programmability	No
Speed Grade	3
Differential I/O Standards	LVPECL
Single-Ended I/O Standards	LVTTL
External Memory Interface	RLDRAM II
Operating Supply Voltage-Min (V)	0.87
Operating Supply Voltage-Max (V)	0.93
I/O Voltage (V)	1.2
Operating Temperature-Min	-40
Operating Temperature-Max	100
Supplier Temperature Grade	Industrial
Tradename	Stratix
Original Package	FC-FBGA
Pin Count	1517
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	2.8
Package Length	40
Package Width	40
PCB changed	1517
