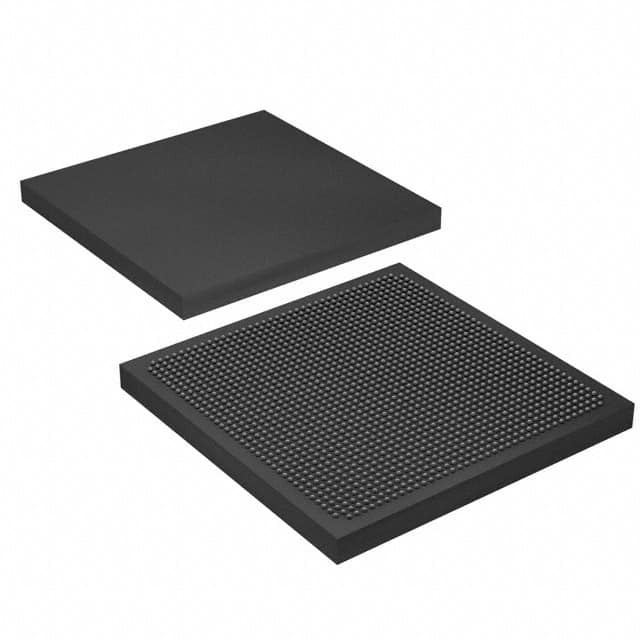

EP4S40G5H40I2N

SKU: 100999

Manufacturer: Intel

FPGA Stratix® IV GT Family 531200 Cells 40nm Technology 0.95V 1517-Pin FC-HFBGA

1320 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	3A991
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Family Name	Stratix® IV GT
Process Technology	40nm
User I/Os	654
Number of I/O Banks	24
Operating Supply Voltage (V)	0.95
Shift Registers	Utilize Memory
Logic Elements	531200
Number of Multipliers	1024 (18x18)
Program Memory Type	SRAM
Embedded Memory (Kbit)	27376
Total Number of Block RAM	64+1280
EMACs	1
IP Core	Viterbi Compiler, Low-Speed/Hybrid Serial Decoder
Provider Name	Altera/CAST, Inc/Bitec/Eureka Technology Inc/El Camino GmbH
SERDES Channels	46
Device Logic Units	531200
Number of Global Clocks	16
Device Number of DLLs/PLLs	8
Transceiver Channels	36
Transceiver Speed (Gbps)	11.3
Dedicated DSP	128
Programmability	Yes
Reprogrammability Support	No
Copy Protection	Yes
In-System Programmability	No
Speed Grade	2
Differential I/O Standards	LVPECL
Single-Ended I/O Standards	LVTTL
External Memory Interface	DDR2 SDRAM
Operating Supply Voltage-Min (V)	0.92
Operating Supply Voltage-Max (V)	0.98
I/O Voltage (V)	1.2
Operating Temperature-Min	0
Operating Temperature-Max	100
Supplier Temperature Grade	Industrial
Tradename	Stratix
Original Package	FC-HFBGA
Pin Count	1517
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	2.9
Package Length	42.5
Package Width	42.5
PCB changed	1517
