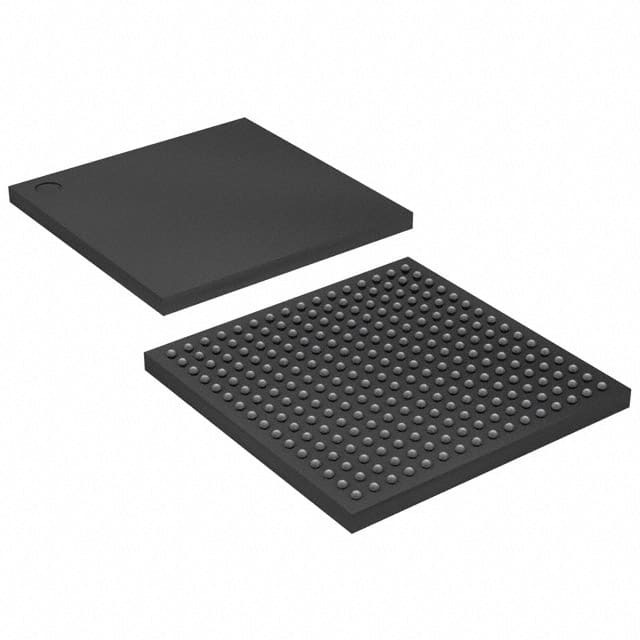

EP3C5F256C8

SKU: 136504

Manufacturer: Intel

FPGA Cyclone® III Family 5136 Cells 402MHz 65nm Technology 1.2V 256-Pin FBGA

2700 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Family Name	Cyclone® III
Process Technology	65nm
User I/Os	182
Number of I/O Banks	8
Operating Supply Voltage (V)	1.2
Logic Elements	5136
Number of Multipliers	23 (18x18)
Program Memory Type	SRAM
Embedded Memory (Kbit)	414
Total Number of Block RAM	46
IP Core	Viterbi Compiler, Low-Speed/Hybrid Serial Decoder
Provider Name	Altera/Freescale/CAST, Inc/MorethanIP/PLDA
Device Logic Units	5136
Number of Global Clocks	10
Device Number of DLLs/PLLs	2
Programmability	No
Reprogrammability Support	No
Copy Protection	Yes
Opr. Frequency (MHz)	402
In-System Programmability	No
Speed Grade	8
Differential I/O Standards	LVPECL
Single-Ended I/O Standards	PCI-X
External Memory Interface	DDR2 SDRAM
Operating Supply Voltage-Min (V)	1.15
Operating Supply Voltage-Max (V)	1.25
I/O Voltage (V)	1.2
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Tradename	Cyclone
Original Package	FBGA
Pin Count	256
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.05
Package Length	17
Package Width	17
PCB changed	256
