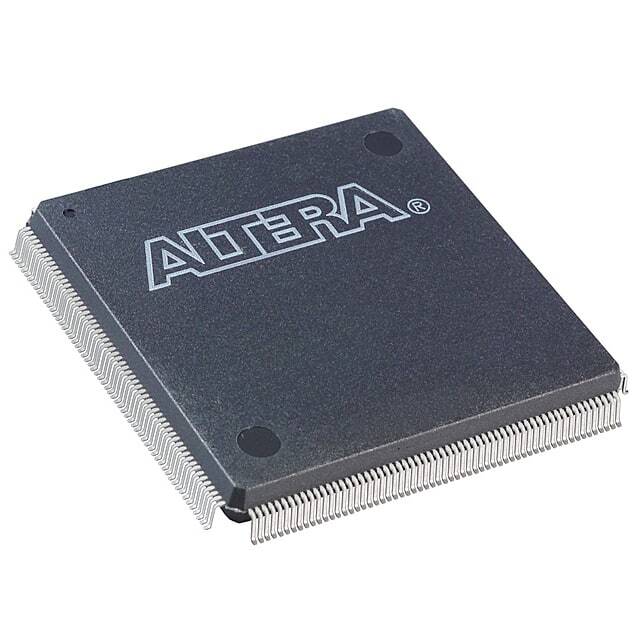

    EP3C16Q240C8

    SKU: 58768
    Manufacturer: Intel
    FPGA Cyclone® III Family 15408 Cells 402MHz 65nm Technology 1.2V 240-Pin PQFP
    2410 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Not Compliant
    ECCN (US) 3A991
    Part Status Active
    SVHC Yes
    Automotive No
    PPAP No
    Family Name Cyclone® III
    Process Technology 65nm
    User I/Os 160
    Number of I/O Banks 8
    Operating Supply Voltage (V) 1.2
    Logic Elements 15408
    Number of Multipliers 56 (18x18)
    Program Memory Type SRAM
    Embedded Memory (Kbit) 504
    Total Number of Block RAM 56
    IP Core Viterbi Compiler, Low-Speed/Hybrid Serial Decoder
    Provider Name Altera/Freescale/CAST, Inc/MorethanIP/PLDA
    Device Logic Units 15408
    Number of Global Clocks 20
    Device Number of DLLs/PLLs 4
    Programmability No
    Reprogrammability Support No
    Copy Protection Yes
    Opr. Frequency (MHz) 402
    In-System Programmability No
    Speed Grade 8
    Differential I/O Standards LVPECL
    Single-Ended I/O Standards LVTTL
    External Memory Interface DDR2 SDRAM
    Operating Supply Voltage-Min (V) 1.15
    Operating Supply Voltage-Max (V) 1.25
    I/O Voltage (V) 1.5
    Operating Temperature-Min 0
    Operating Temperature-Max 85
    Supplier Temperature Grade Commercial
    Tradename Cyclone
    Pin Count 240
    Standard Package Method QFP
    Original Package PQFP
    Terminal Form Surface Mount
    Package Height 3.4
    Package Length 32
    Package Width 32
    PCB changed 240
