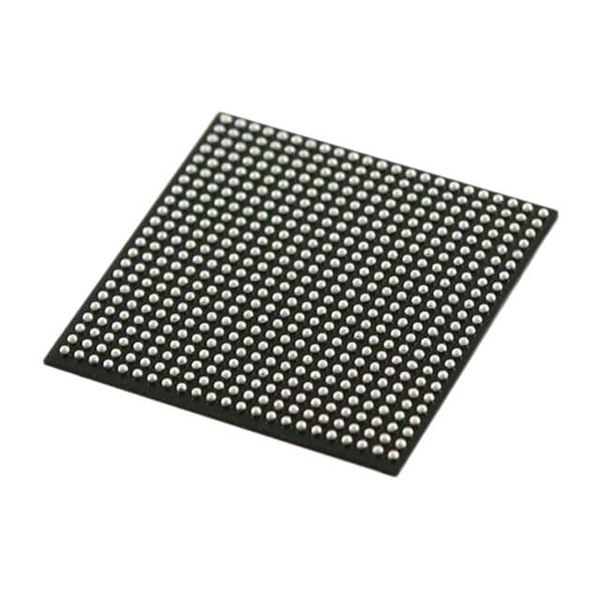

EP3C16F484C7

SKU: 96482

Manufacturer: Intel

FPGA Cyclone® III Family 15408 Cells 437.5MHz 65nm Technology 1.2V 484-Pin FBGA

1940 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A991
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Family Name	Cyclone® III
Process Technology	65nm
User I/Os	346
Number of I/O Banks	8
Operating Supply Voltage (V)	1.2
Logic Elements	15408
Number of Multipliers	56 (18x18)
Program Memory Type	SRAM
Embedded Memory (Kbit)	504
Total Number of Block RAM	56
IP Core	Viterbi Compiler, Low-Speed/Hybrid Serial Decoder
Provider Name	Altera/Freescale/CAST, Inc/MorethanIP/PLDA
Device Logic Units	15408
Number of Global Clocks	20
Device Number of DLLs/PLLs	4
Programmability	No
Reprogrammability Support	No
Copy Protection	Yes
Opr. Frequency (MHz)	437.5
In-System Programmability	No
Speed Grade	7
Differential I/O Standards	HSTL-12
Single-Ended I/O Standards	LVTTL
External Memory Interface	DDR2 SDRAM
Operating Supply Voltage-Min (V)	1.15
Operating Supply Voltage-Max (V)	1.25
I/O Voltage (V)	1.2
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Tradename	Cyclone
Original Package	FBGA
Pin Count	484
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.75
Package Length	23
Package Width	23
PCB changed	484
