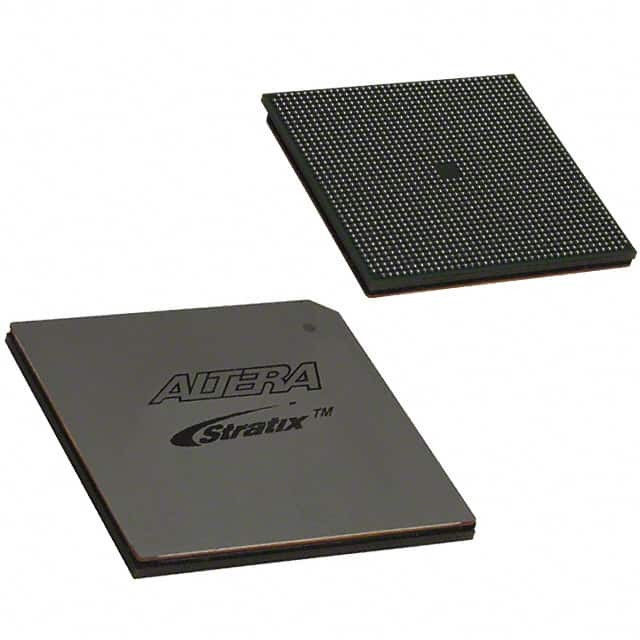

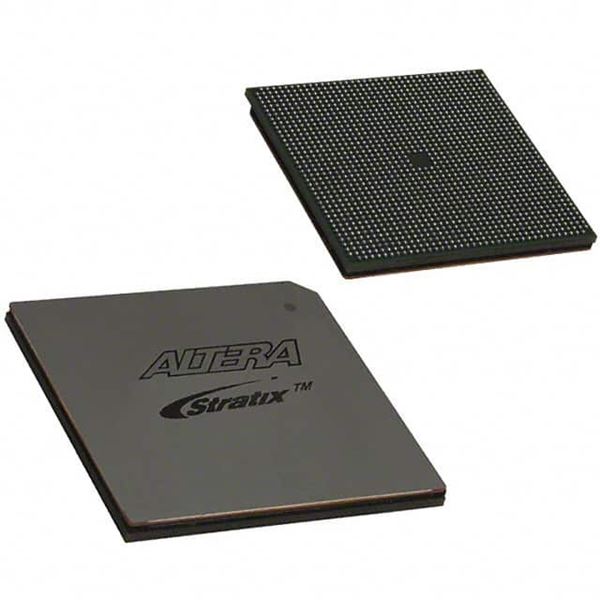

EP2S90F1508C3

SKU: 44567

Manufacturer: Intel

FPGA Stratix® II Family 90960 Cells 816.99MHz 90nm Technology 1.2V 1508-Pin FC-FBGA Tray

3090 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A001.a.7.a
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Family Name	Stratix® II
Process Technology	90nm
User I/Os	902
Number of I/O Banks	8
Shift Registers	Utilize Memory
Operating Supply Voltage (V)	1.2
Logic Elements	90960
Number of Multipliers	192 (18x18)
Program Memory Type	SRAM
Embedded Memory (Kbit)	4414.5
Total Number of Block RAM	4+408+488
IP Core	Viterbi Compiler, High-Speed Parallel Decoder
Provider Name	Altera/CAST, Inc/Barco Silex/Mobiveil, Inc/Eureka Technology Inc/PLDA
Device Logic Units	90960
Number of Global Clocks	16
Device Number of DLLs/PLLs	12
Maximum Supply Current (mA)	620(Typ)
JTAG Support	Yes
Dedicated DSP	48
Programmability	No
Reprogrammability Support	No
Number of Look-up Table Input	8
Copy Protection	No
In-System Programmability	Yes
Opr. Frequency (MHz)	816.99
Speed Grade	3
Differential I/O Standards	LVPECL
Single-Ended I/O Standards	LVTTL
Maximum I/O Performance	1Gbps
External Memory Interface	DDR SDRAM
Operating Supply Voltage-Min (V)	1.15
Operating Supply Voltage-Max (V)	1.25
I/O Voltage (V)	1.2
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Packing Method	Tray
Tradename	Stratix
Original Package	FC-FBGA
Pin Count	1508
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	3(Max)
Package Length	40
Package Width	40
PCB changed	1508
