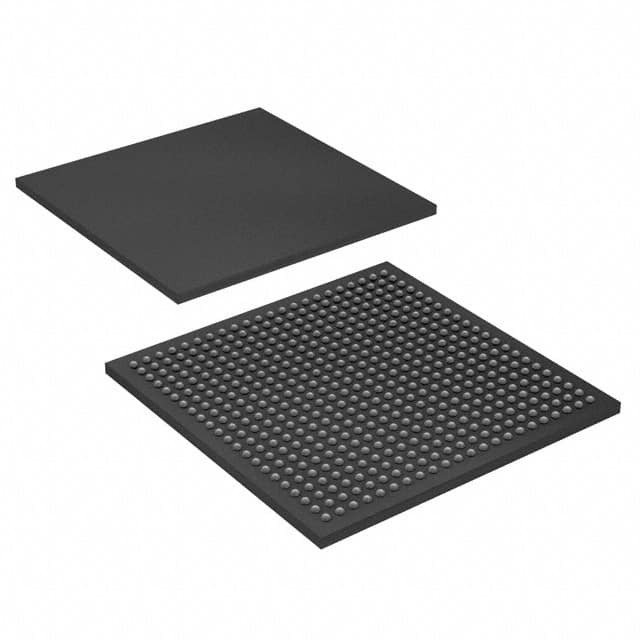

EP2S60F484C4

SKU: 100997

Manufacturer: Intel

FPGA Stratix® II Family 60440 Cells 711.24MHz 90nm Technology 1.2V 484-Pin FC-FBGA

2030 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A001.a.7.a
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Family Name	Stratix® II
Process Technology	90nm
User I/Os	334
Number of I/O Banks	8
Operating Supply Voltage (V)	1.2
Shift Registers	Utilize Memory
Logic Elements	60440
Number of Multipliers	144 (18x18)
Program Memory Type	SRAM
Embedded Memory (Kbit)	2484.6
Total Number of Block RAM	2+255+329
IP Core	PowerPC/SH/1960 System Controller
Provider Name	Altera/CAST, Inc/Barco Silex/Mobiveil, Inc/Eureka Technology Inc/PLDA
Device Logic Units	60440
Number of Global Clocks	16
Device Number of DLLs/PLLs	12
Dedicated DSP	36
Programmability	No
Reprogrammability Support	No
Copy Protection	Yes
Opr. Frequency (MHz)	711.24
In-System Programmability	Yes
Speed Grade	4
GMACs	37.8
Mega Multiply Accumulates per second	37800
Differential I/O Standards	LVPECL
Single-Ended I/O Standards	LVTTL
Maximum I/O Performance	1Gbps
External Memory Interface	DDR SDRAM
Operating Supply Voltage-Min (V)	1.15
Operating Supply Voltage-Max (V)	1.25
I/O Voltage (V)	1.2
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Tradename	Stratix
Original Package	FC-FBGA
Pin Count	484
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	3(Max)
Package Length	23
Package Width	23
PCB changed	484
