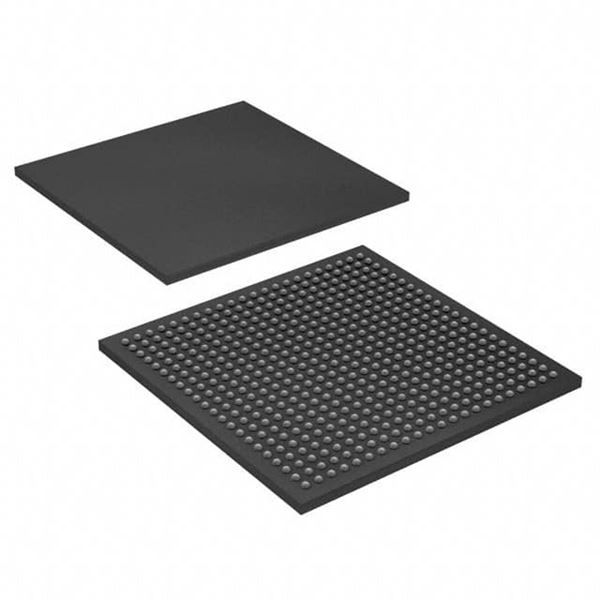

EP2S30F484C3

SKU: 157787

Manufacturer: Intel

FPGA Stratix® II Family 33880 Cells 816.99MHz 90nm Technology 1.2V 484-Pin FC-FBGA Tray

1140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A991
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Family Name	Stratix® II
Process Technology	90nm
User I/Os	342
Number of I/O Banks	8
Operating Supply Voltage (V)	1.2
Shift Registers	Utilize Memory
Logic Elements	33880
Number of Multipliers	64 (18x18)
Program Memory Type	SRAM
Embedded Memory (Kbit)	1337.6
Total Number of Block RAM	1+144+202
IP Core	32/64-bit PCI-X bus Master/Target interface Core, 66/100/133Mhz
Provider Name	Altera/CAST, Inc/Barco Silex/Mobiveil, Inc/Eureka Technology Inc/PLDA
Device Logic Units	33880
Number of Global Clocks	16
Device Number of DLLs/PLLs	6
Maximum Supply Current (mA)	300(Typ)
JTAG Support	Yes
Dedicated DSP	16
Programmability	No
Reprogrammability Support	No
Number of Look-up Table Input	8
Copy Protection	No
Opr. Frequency (MHz)	816.99
In-System Programmability	Yes
Speed Grade	3
Differential I/O Standards	LVDS
Single-Ended I/O Standards	CMOS
Maximum I/O Performance	1Gbps
External Memory Interface	DDR2 SDRAM
Operating Supply Voltage-Min (V)	1.15
Operating Supply Voltage-Max (V)	1.25
I/O Voltage (V)	1.5
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Packing Method	Tray
Tradename	Stratix
Original Package	FC-FBGA
Pin Count	484
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	3(Max)
Package Length	23
Package Width	23
PCB changed	484
