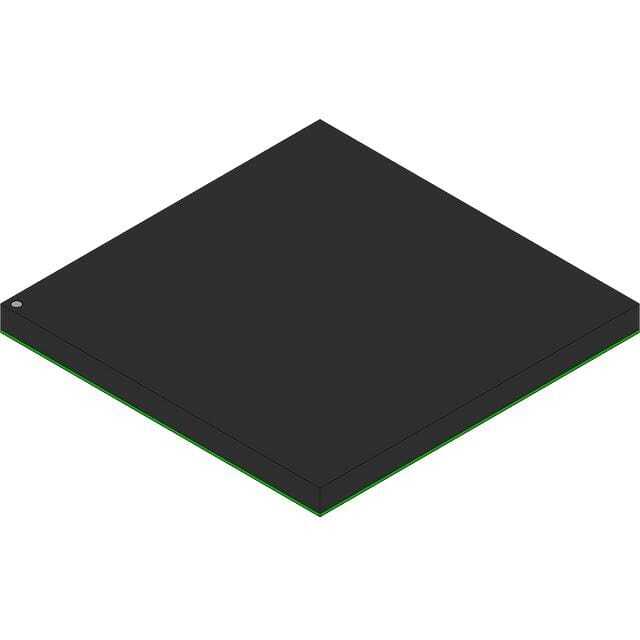

EP2S180F1508C3

SKU: 61294

Manufacturer: Intel

FPGA Stratix® II Family 179400 Cells 778.82MHz 90nm Technology 1.2V 1508-Pin FC-FBGA

3830 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A001.a.7.a
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Family Name	Stratix® II
Process Technology	90nm
User I/Os	1170
Number of I/O Banks	8
Operating Supply Voltage (V)	1.2
Shift Registers	Utilize Memory
Logic Elements	179400
Number of Multipliers	384 (18x18)
Program Memory Type	SRAM
Embedded Memory (Kbit)	9163.1
Total Number of Block RAM	9+768+930
IP Core	Viterbi Compiler, High-Speed Parallel Decoder
Provider Name	Altera/CAST, Inc/Barco Silex/Mobiveil, Inc/Eureka Technology Inc/PLDA
Device Logic Units	179400
Number of Global Clocks	16
Device Number of DLLs/PLLs	12
Dedicated DSP	96
Programmability	No
Reprogrammability Support	No
Copy Protection	No
Opr. Frequency (MHz)	778.82
In-System Programmability	Yes
Speed Grade	3
Differential I/O Standards	LVPECL
Single-Ended I/O Standards	CMOS
Maximum I/O Performance	1Gbps
External Memory Interface	QDRII+SRAM
Operating Supply Voltage-Min (V)	1.15
Operating Supply Voltage-Max (V)	1.25
I/O Voltage (V)	1.5
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Tradename	Stratix
Original Package	FC-FBGA
Pin Count	1508
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	3(Max)
Package Length	40
Package Width	40
PCB changed	1508
