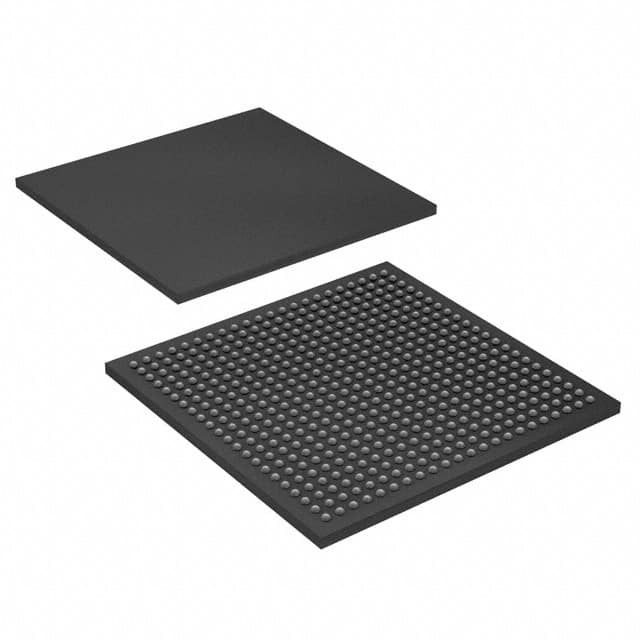

EP2S15F484I4

SKU: 30347

Manufacturer: Intel

FPGA Stratix® II Family 15600 Cells 711.24MHz 90nm Technology 1.2V 484-Pin FC-FBGA

3140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A991
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Family Name	Stratix® II
Process Technology	90nm
User I/Os	342
Number of I/O Banks	8
Operating Supply Voltage (V)	1.2
Shift Registers	Utilize Memory
Logic Elements	15600
Number of Multipliers	48 (18x18)
Program Memory Type	SRAM
Embedded Memory (Kbit)	409.5
Total Number of Block RAM	0+78+104
IP Core	Viterbi Compiler, High-Speed Parallel Decoder
Provider Name	Altera/CAST, Inc/Barco Silex/Mobiveil, Inc/Eureka Technology Inc/PLDA
Device Logic Units	15600
Number of Global Clocks	16
Device Number of DLLs/PLLs	6
Dedicated DSP	12
Programmability	No
Reprogrammability Support	No
Copy Protection	Yes
Opr. Frequency (MHz)	711.24
In-System Programmability	Yes
Speed Grade	4
GMACs	12.6
Mega Multiply Accumulates per second	12600
Differential I/O Standards	LVPECL
Single-Ended I/O Standards	LVTTL
Maximum I/O Performance	1Gbps
External Memory Interface	QDRII+SRAM
Operating Supply Voltage-Min (V)	1.15
Operating Supply Voltage-Max (V)	1.25
I/O Voltage (V)	3.3
Operating Temperature-Min	-40
Operating Temperature-Max	100
Supplier Temperature Grade	Industrial
Tradename	Stratix
Original Package	FC-FBGA
Pin Count	484
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	3(Max)
Package Length	23
Package Width	23
PCB changed	484
