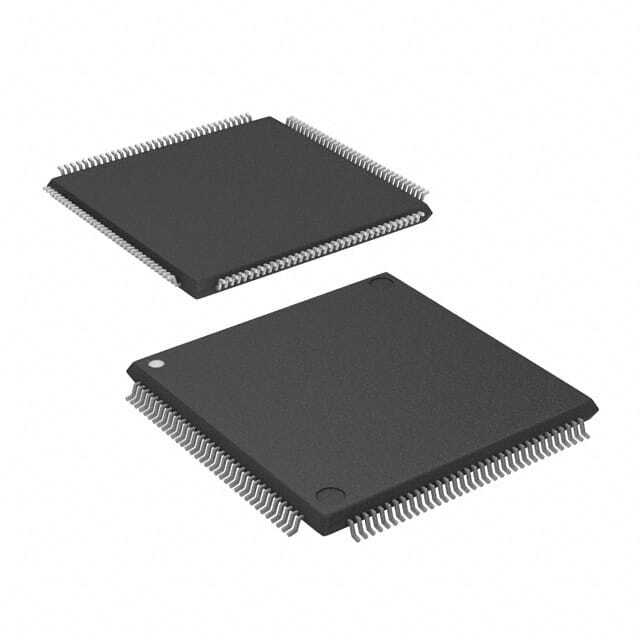

EP2C5T144C8

SKU: 58765

Manufacturer: Intel

FPGA Cyclone® II Family 4608 Cells 402.58MHz 90nm Technology 1.2V 144-Pin TQFP

1260 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Family Name	Cyclone® II
Process Technology	90nm
User I/Os	89
Number of I/O Banks	4
Operating Supply Voltage (V)	1.2
Shift Registers	Utilize Memory
Logic Elements	4608
Number of Multipliers	13 (18x18)
Program Memory Type	SRAM
Embedded Memory (Kbit)	117
Total Number of Block RAM	26
IP Core	32/64-bit PCI-X bus Master/Target interface Core, 66/100/133Mhz
Provider Name	Altera/Freescale/CAST, Inc/MorethanIP/PLDA
Device Logic Units	4608
Number of Global Clocks	8
Device Number of DLLs/PLLs	2
Programmability	No
Reprogrammability Support	No
Copy Protection	No
Opr. Frequency (MHz)	402.58
In-System Programmability	Yes
Speed Grade	8
Differential I/O Standards	PCI-X
Single-Ended I/O Standards	LVDS
Maximum I/O Performance	640Mbps
External Memory Interface	DDR SDRAM
Operating Supply Voltage-Min (V)	1.15
Operating Supply Voltage-Max (V)	1.25
I/O Voltage (V)	1.5
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Tradename	Cyclone
Original Package	TQFP
Pin Count	144
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.4
Package Length	20
Package Width	20
PCB changed	144
