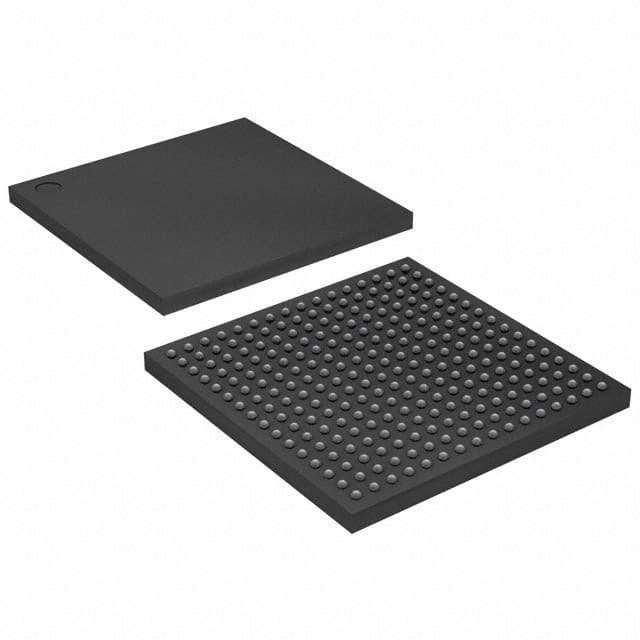

EP2C5F256C6

SKU: 68321

Manufacturer: Intel

FPGA Cyclone® II Family 4608 Cells 500MHz 90nm Technology 1.2V 256-Pin FBGA

4100 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Family Name	Cyclone® II
Process Technology	90nm
User I/Os	158
Number of I/O Banks	4
Operating Supply Voltage (V)	1.2
Shift Registers	Utilize Memory
Logic Elements	4608
Number of Multipliers	13 (18x18)
Program Memory Type	SRAM
Embedded Memory (Kbit)	117
Total Number of Block RAM	26
IP Core	32/64-bit PCI-X bus Master/Target interface Core, 66/100/133Mhz
Provider Name	Altera/Freescale/CAST, Inc/MorethanIP/PLDA
Device Logic Units	4608
Number of Global Clocks	8
Device Number of DLLs/PLLs	2
Programmability	No
Reprogrammability Support	No
Copy Protection	No
Opr. Frequency (MHz)	500
In-System Programmability	Yes
Speed Grade	6
Differential I/O Standards	LVDS
Single-Ended I/O Standards	LVDS
Maximum I/O Performance	640Mbps
External Memory Interface	DDR SDRAM
Operating Supply Voltage-Min (V)	1.15
Operating Supply Voltage-Max (V)	1.25
I/O Voltage (V)	1.5
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Tradename	Cyclone
Original Package	FBGA
Pin Count	256
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.05
Package Length	17
Package Width	17
PCB changed	256
