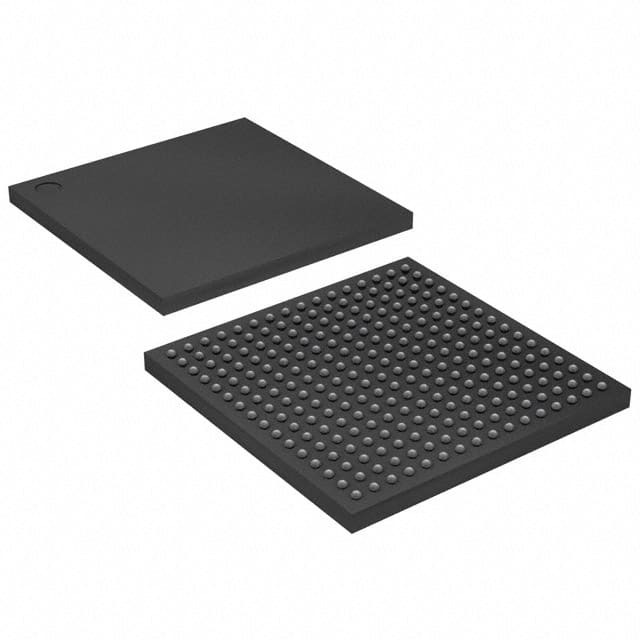

EP2C20F256C7

SKU: 23254

Manufacturer: Intel

FPGA Cyclone® II Family 18752 Cells 402.58MHz 90nm Technology 1.2V 256-Pin FBGA

3880 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A991
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Family Name	Cyclone® II
Process Technology	90nm
User I/Os	152
Number of I/O Banks	8
Operating Supply Voltage (V)	1.2
Shift Registers	Utilize Memory
Logic Elements	18752
Number of Multipliers	26 (18x18)
Program Memory Type	SRAM
Embedded Memory (Kbit)	234
Total Number of Block RAM	52
IP Core	Viterbi Compiler, Low-Speed/Hybrid Serial Decoder
Provider Name	Altera/Freescale/CAST, Inc/MorethanIP/PLDA
Device Logic Units	18752
Number of Global Clocks	16
Device Number of DLLs/PLLs	4
Programmability	No
Reprogrammability Support	No
Copy Protection	No
Opr. Frequency (MHz)	402.58
In-System Programmability	Yes
Speed Grade	7
Differential I/O Standards	LVDS
Single-Ended I/O Standards	LVDS
Maximum I/O Performance	640Mbps
External Memory Interface	DDR SDRAM
Operating Supply Voltage-Min (V)	1.15
Operating Supply Voltage-Max (V)	1.25
I/O Voltage (V)	3.3
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Tradename	Cyclone
Original Package	FBGA
Pin Count	256
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.05
Package Length	17
Package Width	17
PCB changed	256
