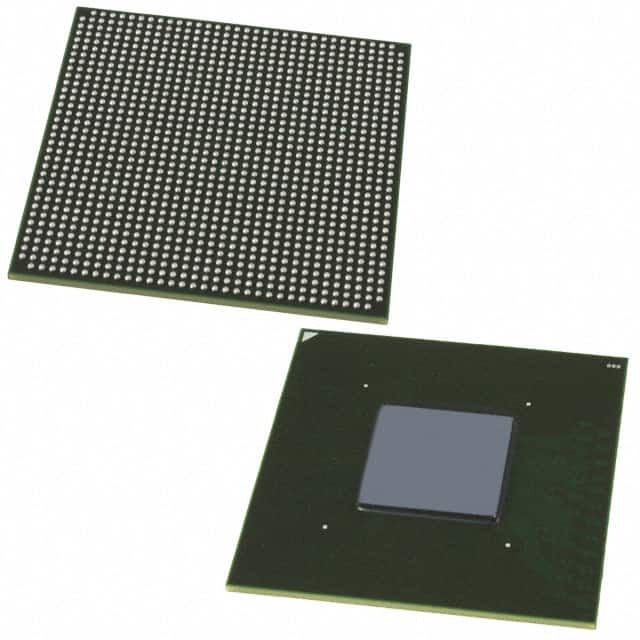

EP2AGX95EF35C6N

SKU: 72761

Manufacturer: Intel

FPGA Arria® II GX Family 89178 Cells 400MHz 40nm Technology 0.9V 1152-Pin FC-FBGA

2290 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A991
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Family Name	Arria® II GX
Process Technology	40nm
User I/Os	452
Number of I/O Banks	8
Operating Supply Voltage (V)	0.9
Logic Elements	89178
Number of Multipliers	448 (18x18)
Program Memory Type	SRAM
Embedded Memory (Kbit)	6679
Total Number of Block RAM	612
EMACs	1
IP Core	Video LVDS SerDes Transmitter / Receiver
Provider Name	Microtronix Inc/Mobiveil, Inc/CAST, Inc/Barco Silex/MorethanIP
SERDES Channels	32
Device Logic Units	89178
Device Number of DLLs/PLLs	6
Transceiver Channels	12
Transceiver Speed (Gbps)	6.375
Dedicated DSP	56
PCIe	1
Programmability	Yes
Reprogrammability Support	Yes
Copy Protection	Yes
Opr. Frequency (MHz)	400
In-System Programmability	Yes
Speed Grade	6
Differential I/O Standards	LVDS
Single-Ended I/O Standards	LVTTL
External Memory Interface	DDR SDRAM
Operating Supply Voltage-Min (V)	0.87
Operating Supply Voltage-Max (V)	0.93
I/O Voltage (V)	3.3
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Tradename	Arria
Original Package	FC-FBGA
Pin Count	1152
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.9
Package Length	35
Package Width	35
PCB changed	1152
