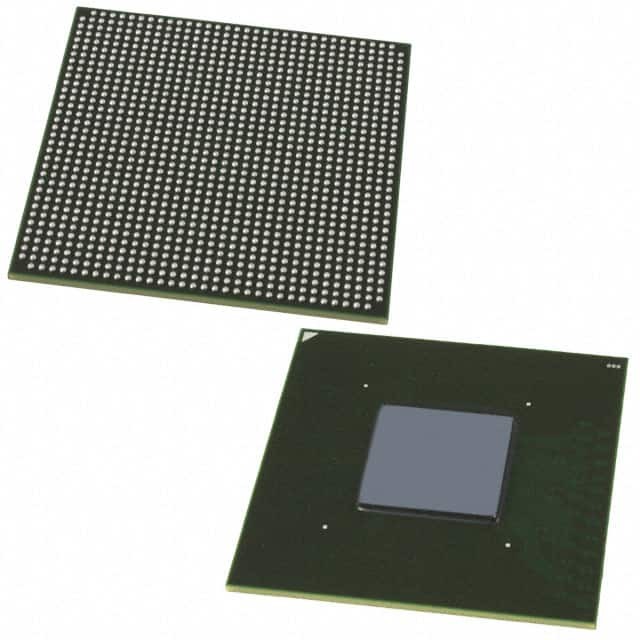

EP2AGX190FF35I5

SKU: 96476

Manufacturer: Intel

FPGA Arria® II GX Family 181165 Cells 500MHz 40nm Technology 0.9V 1152-Pin FC-FBGA Tray

3060 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A991
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Family Name	Arria® II GX
Process Technology	40nm
User I/Os	612
Number of I/O Banks	12
Operating Supply Voltage (V)	0.9
Logic Elements	181165
Number of Multipliers	656 (18x18)
Program Memory Type	SRAM
Embedded Memory (Kbit)	9939
Total Number of Block RAM	840
EMACs	1
IP Core	Video LVDS SerDes Transmitter / Receiver
Provider Name	Microtronix Inc/Mobiveil, Inc/CAST, Inc/Barco Silex/MorethanIP
SERDES Channels	48
Device Logic Units	181165
Device Number of DLLs/PLLs	6
Transceiver Channels	8
Transceiver Speed (Gbps)	6.375
Dedicated DSP	82
PCIe	1
Programmability	Yes
Reprogrammability Support	Yes
Copy Protection	Yes
Opr. Frequency (MHz)	500
In-System Programmability	Yes
Speed Grade	5
Differential I/O Standards	LVPECL
Single-Ended I/O Standards	LVTTL
External Memory Interface	QDRII+SRAM
Operating Supply Voltage-Min (V)	0.87
Operating Supply Voltage-Max (V)	0.93
I/O Voltage (V)	1.2
Operating Temperature-Min	-40
Operating Temperature-Max	100
Supplier Temperature Grade	Industrial
Packing Method	Tray
Tradename	Arria
Original Package	FC-FBGA
Pin Count	1152
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.9
Package Length	35
Package Width	35
PCB changed	1152
