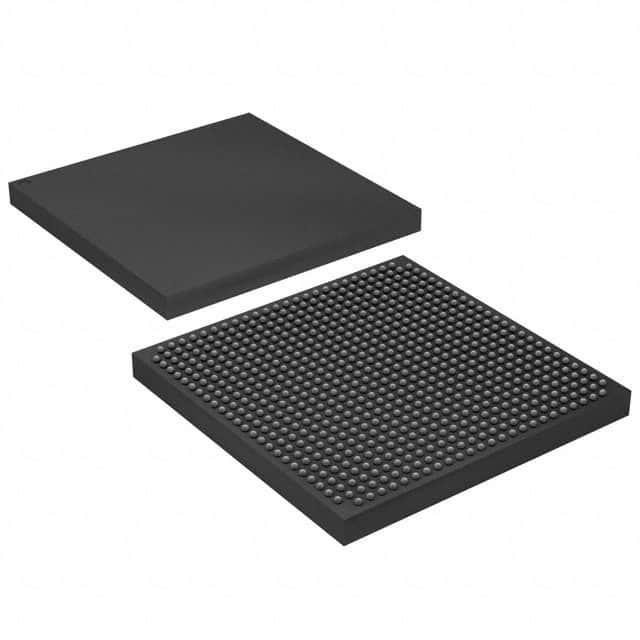

EP2A40F672C9

SKU: 23253

Manufacturer: Intel

FPGA APEX II Family 1.5M Gates 38400 Cells 366MHz 0.15um Technology 1.5V 672-Pin FC-FBGA

3180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A001.a.7.a
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Family Name	APEX II
Process Technology	0.15um
User I/Os	492
Number of I/O Banks	8
Number of Inter Dielectric Layers	8
Operating Supply Voltage (V)	1.5
Logic Elements	38400
Device System Gates	3000000
Program Memory Type	SRAM
Embedded Memory (Kbit)	640
Total Number of Block RAM	160
Device Logic Gates	1500000
Device Logic Units	38400
Number of Global Clocks	8
Device Number of DLLs/PLLs	4
Programmability	No
Reprogrammability Support	Yes
Copy Protection	Yes
Opr. Frequency (MHz)	366
In-System Programmability	Yes
Speed Grade	9
Differential I/O Standards	LVPECL
Single-Ended I/O Standards	LVTTL
Maximum I/O Performance	380Gbps
External Memory Interface	DDR SDRAM
Operating Supply Voltage-Min (V)	1.425
Operating Supply Voltage-Max (V)	1.575
I/O Voltage (V)	1.5
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Tradename	APEX
Original Package	FC-FBGA
Pin Count	672
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	3(Max)
Package Length	27
Package Width	27
PCB changed	672
