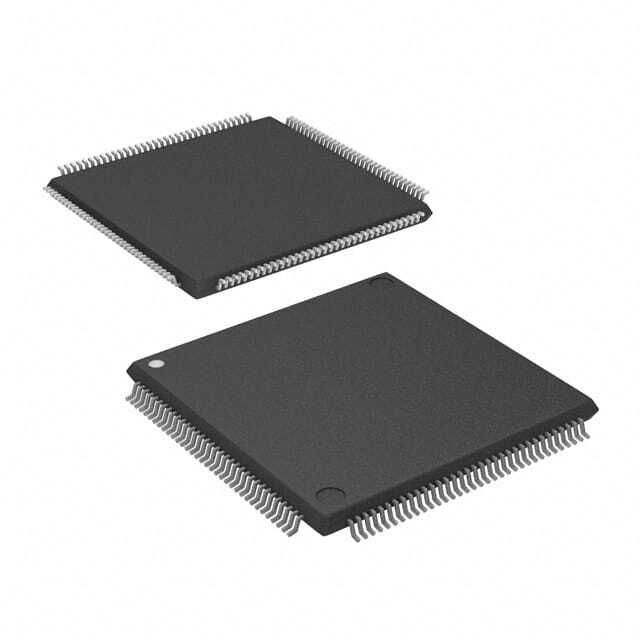

EP20K100TC144-3

SKU: 93882

Manufacturer: Intel

FPGA APEX 20K Family 100K Gates 4160 Cells 167MHz 0.22um Technology 2.5V 144-Pin TQFP

1520 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991
Part Status	Obsolete
Automotive	No
PPAP	No
Family Name	APEX 20K
Process Technology	0.22um
User I/Os	101
Number of I/O Banks	8
Operating Supply Voltage (V)	2.5
Logic Elements	4160
Device System Gates	263000
Program Memory Type	SRAM
Embedded Memory (Kbit)	52
Total Number of Block RAM	26
Device Logic Gates	100000
Device Logic Units	4160
Number of Global Clocks	8
Device Number of DLLs/PLLs	1
Programmability	No
Reprogrammability Support	No
Copy Protection	No
Opr. Frequency (MHz)	167
In-System Programmability	No
Speed Grade	3
Differential I/O Standards	AGP
Single-Ended I/O Standards	LVCMOS
Maximum I/O Performance	840Mbps
External Memory Interface	ZBT SRAM
Operating Supply Voltage-Min (V)	2.375
Operating Supply Voltage-Max (V)	2.625
I/O Voltage (V)	3.3
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Tradename	APEX
Original Package	TQFP
Pin Count	144
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.4
Package Length	20
Package Width	20
PCB changed	144
