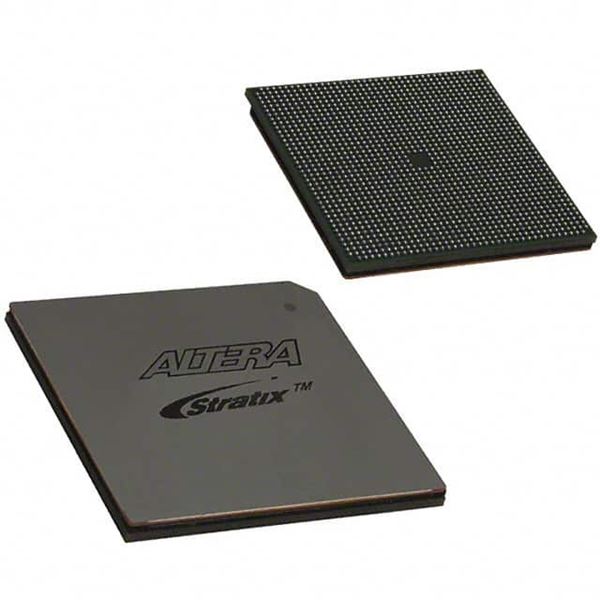

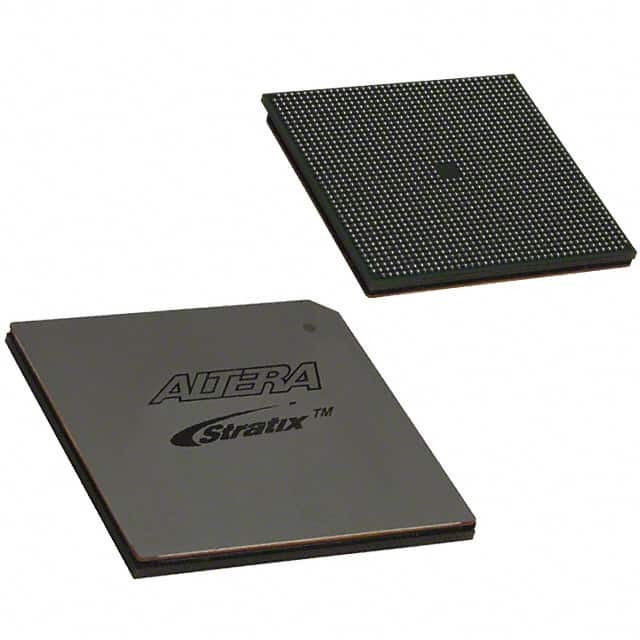

EP1S80F1508C6

SKU: 146092

Manufacturer: Intel

FPGA Stratix® Family 79040 Cells 450.05MHz 130nm Technology 1.5V 1508-Pin FC-FBGA

4230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A001.a.7.a
Part Status	Obsolete
Automotive	No
PPAP	No
Family Name	Stratix®
Process Technology	130nm
User I/Os	1203
Number of I/O Banks	8
Operating Supply Voltage (V)	1.5
Shift Registers	Utilize Memory
Logic Elements	79040
Number of Multipliers	176 (9x9)
Program Memory Type	SRAM
Embedded Memory (Kbit)	7253.4
Total Number of Block RAM	9+364+767
IP Core	Video LVDS SerDes Transmitter / Receiver
Provider Name	Microtronix Inc/CAST, Inc/Northwest Logic, Inc/IFI/Digital Core Design/PLDA
SERDES Channels	30
Device Logic Units	79040
Number of Global Clocks	16
Device Number of DLLs/PLLs	12
Dedicated DSP	22
Programmability	No
Reprogrammability Support	No
Copy Protection	Yes
Opr. Frequency (MHz)	450.05
In-System Programmability	Yes
Speed Grade	6
Differential I/O Standards	LVPECL
Single-Ended I/O Standards	LVTTL
Maximum I/O Performance	840Mbps
External Memory Interface	DDR SDRAM
Operating Supply Voltage-Min (V)	1.425
Operating Supply Voltage-Max (V)	1.575
I/O Voltage (V)	3.3
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Tradename	Stratix
Original Package	FC-FBGA
Pin Count	1508
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	3(Max)
Package Length	40
Package Width	40
PCB changed	1508
