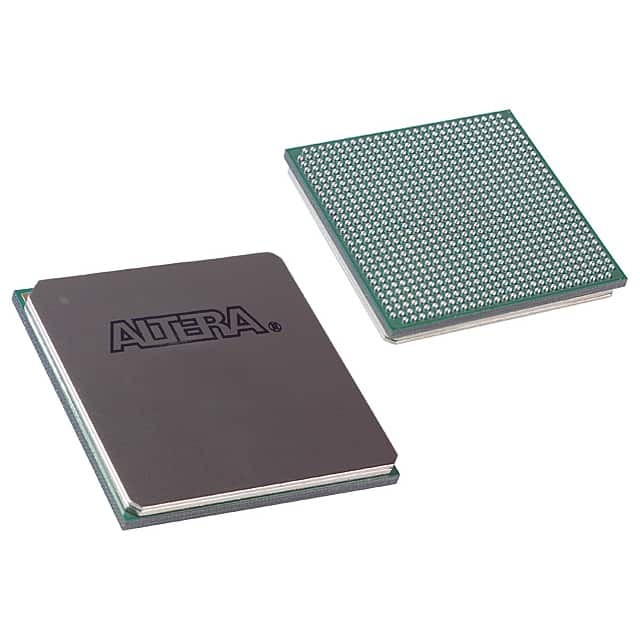

EP1S30F780C5

SKU: 37446

Manufacturer: Intel

FPGA Stratix® Family 32470 Cells 500MHz 130nm Technology 1.5V 780-Pin FC-FBGA

1800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A001.a.7.a
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Family Name	Stratix®
Process Technology	130nm
User I/Os	597
Number of I/O Banks	8
Operating Supply Voltage (V)	1.5
Shift Registers	Utilize Memory
Logic Elements	32470
Number of Multipliers	96 (9x9)
Program Memory Type	SRAM
Embedded Memory (Kbit)	3239.4
Total Number of Block RAM	4+171+295
IP Core	DI2CSB I2C Bus Interface-Slave
Provider Name	Microtronix Inc/CAST, Inc/Northwest Logic, Inc/IFI/Digital Core Design/PLDA
SERDES Channels	30
Device Logic Units	32470
Number of Global Clocks	16
Device Number of DLLs/PLLs	10
Dedicated DSP	12
Programmability	No
Reprogrammability Support	No
Copy Protection	Yes
Opr. Frequency (MHz)	500
In-System Programmability	Yes
Speed Grade	5
Differential I/O Standards	LVPECL
Single-Ended I/O Standards	LVTTL
Maximum I/O Performance	840Mbps
External Memory Interface	DDR SDRAM
Operating Supply Voltage-Min (V)	1.425
Operating Supply Voltage-Max (V)	1.575
I/O Voltage (V)	1.5
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Tradename	Stratix
Original Package	FC-FBGA
Pin Count	780
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	3(Max)
Package Length	29
Package Width	29
PCB changed	780
