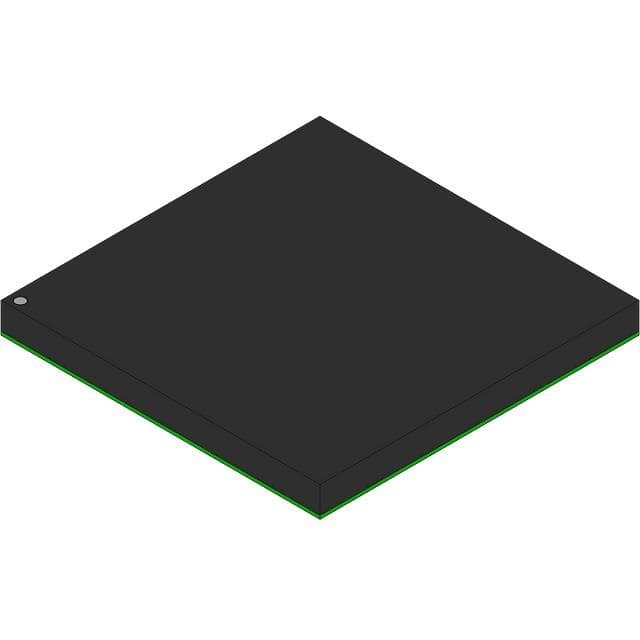

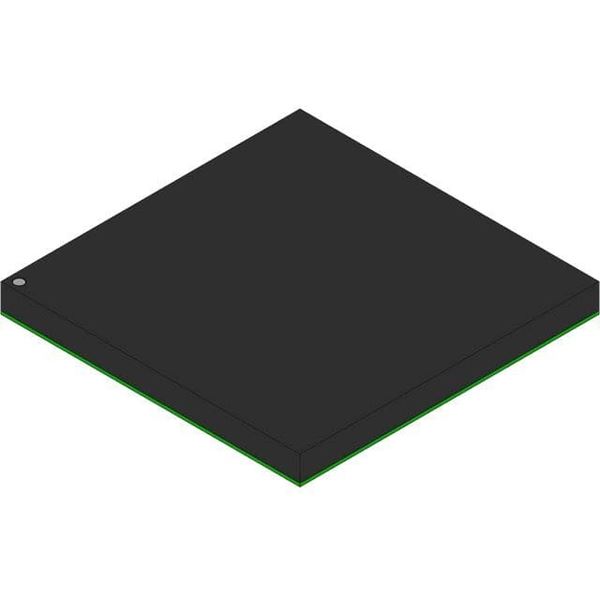

EP1S30F1020C7

SKU: 131987

Manufacturer: Intel

FPGA Stratix® Family 32470 Cells 420.17MHz 130nm Technology 1.5V 1020-Pin FC-FBGA

3060 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A001.a.7.a
Part Status	Obsolete
Automotive	No
PPAP	No
Family Name	Stratix®
Process Technology	130nm
User I/Os	726
Number of I/O Banks	8
Operating Supply Voltage (V)	1.5
Shift Registers	Utilize Memory
Logic Elements	32470
Number of Multipliers	96 (9x9)
Program Memory Type	SRAM
Embedded Memory (Kbit)	3239.4
Total Number of Block RAM	4+171+295
IP Core	PCI Express Cores
Provider Name	Microtronix Inc/CAST, Inc/Northwest Logic, Inc/IFI/Digital Core Design/PLDA
SERDES Channels	30
Device Logic Units	32470
Number of Global Clocks	16
Device Number of DLLs/PLLs	10
Dedicated DSP	12
Programmability	No
Reprogrammability Support	No
Copy Protection	Yes
Opr. Frequency (MHz)	420.17
In-System Programmability	Yes
Speed Grade	7
Differential I/O Standards	LVDS
Single-Ended I/O Standards	LVCMOS
Maximum I/O Performance	840Mbps
External Memory Interface	QDR II+SRAM
Operating Supply Voltage-Min (V)	1.425
Operating Supply Voltage-Max (V)	1.575
I/O Voltage (V)	3.3
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Tradename	Stratix
Original Package	FC-FBGA
Pin Count	1020
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	3(Max)
Package Length	33
Package Width	33
PCB changed	1020
